TCYC-7 Cyclorama
300 W lumiled 7 colour LED engine using custom designed array
CRI > 96 Consistently on full CCT range
LED colour linearity and temperature drift compensation
Optics Colour Shift compensation
Colour wheel with 64 spectrum matching Filter gels
2000 – 8000 K Seamless CCT channel
RGB, CMY and HSI Colour control

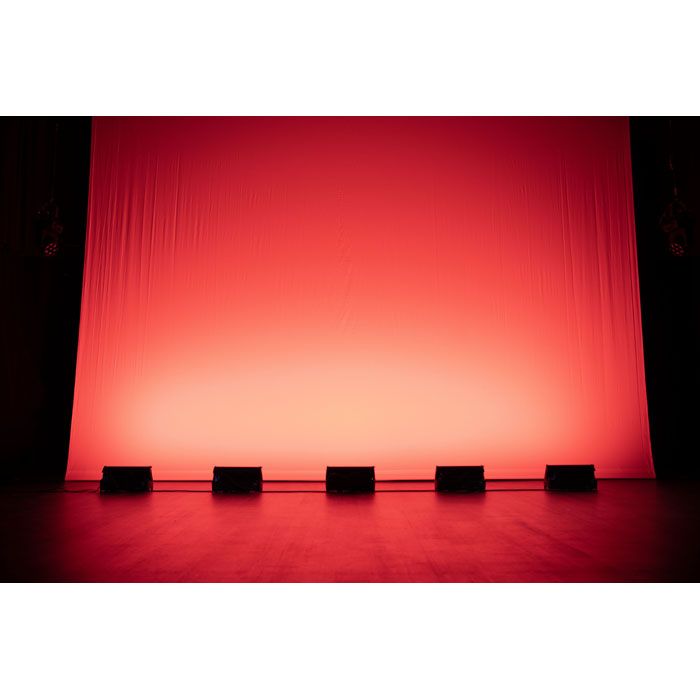

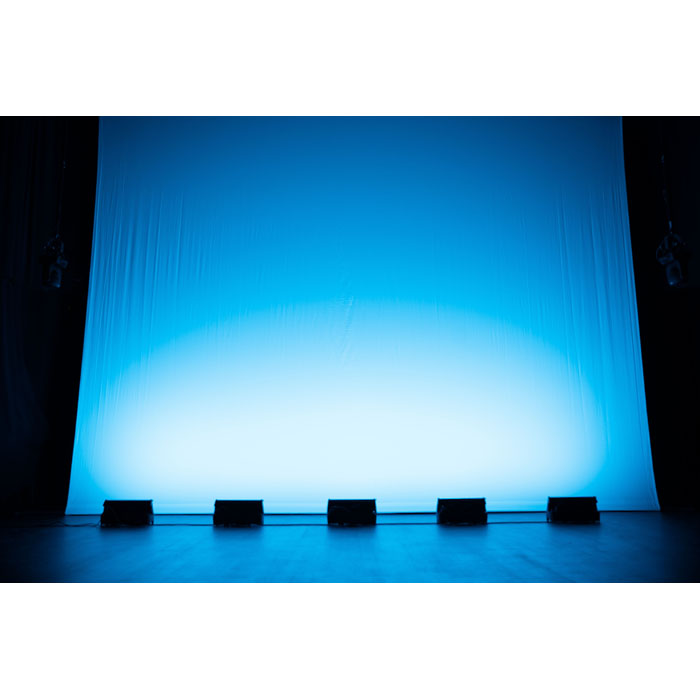

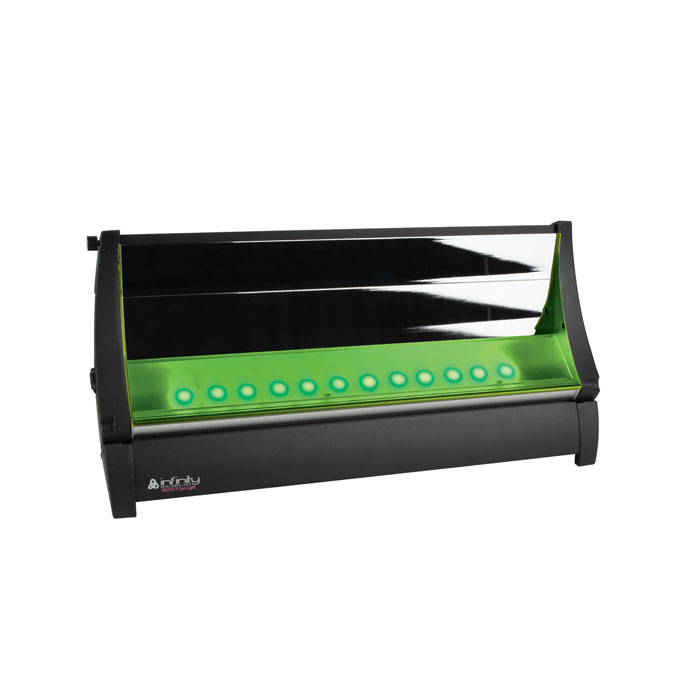

Infinity TCYC-7 Cyclorama is an extremely bright and powerful luminaire. Equipped with a special high gloss asymmetric mirror, the projection angle is 75° with a very linear drop. A motorised tilt range of 30° ensures easy floor or ceiling focussing. The TCYC shares the same custom designed 7 colour LED array and intelligent software as the TS-260C7 and the TFLD-7. It creates an amazing smooth seamless beam projection for your horizons. Because they are based on the same technology combining these 3 coloured luminaires in one setup creates the perfect match when light and colour quality are needed.
Light Source Quantity: 7
Light Source Power: 300 W
LED Colour Type: RGBCALDB
Luminous Flux (Total): 6000 lm
CRI: 96
Minimum CCT: 2000 K
Maximum CCT: 8000 K
Beam Angle (Horizontal): 75°
Beam Angle (Vertical): 140°
Control Mode: DMX / Manual
DMX Channels: 1 / 6 / 7 / 11 / 21
Protocols: DMX / RDM
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 310 W
Power Connector In: powerCON Blue
Power Connector Out: powerCON Grey
DMX Connector: XLR 5P In/Out
Length (mm): 566 mm
Width (mm): 195 mm
Height (mm): 285 mm
Weight: 11.2 kg
Housing: Aluminium
Colour: Black
