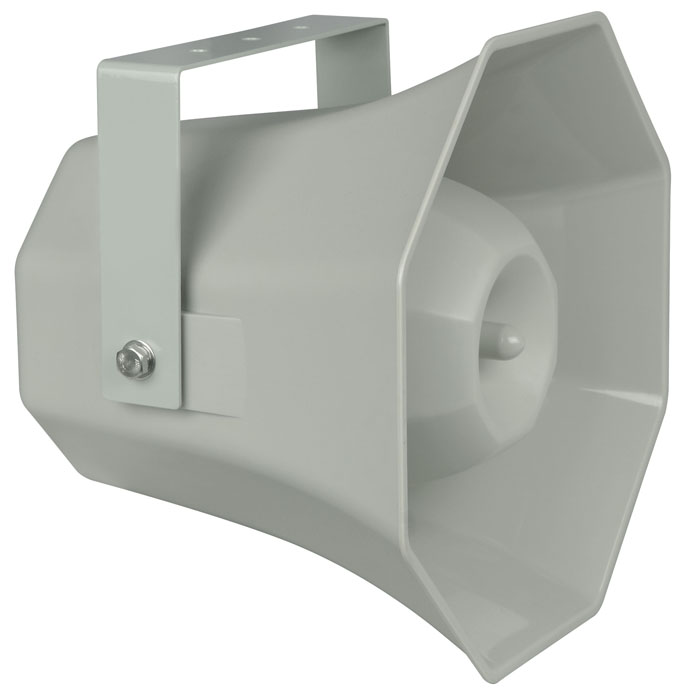

MHS-80S
Passive 80 W Hexagon Horn Speaker - light gray
DAP![DAP]()
80 W peak power – 100 V – 2-way system
Four power taps (10, 20, 40 and 80 W)
Suitable for outdoor use (IP66)
Robust ABS housing
Bracket included
The DAP MHS-80S is a passive 80-watt square horn speaker suitable for 100 V outdoor installations in public places such as shopping malls, terraces and theme parks. The light gray installation speaker is a 2-way system with a 6.5-inch low driver and a 1" high driver for a clear full-range sound.
The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer. It has a strong ABS housing and a bracket is included.
Peak Input Power: 80 W
Transformer: 100 V
Line Transformer Taps: 10 / 20 / 40 / 80 W
Passive Input Connection: Terminal
Speaker System: 2-way
Speaker Sensitivity (1 W/1 m): 99 dB
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 114 dB
Frequency Response Minimum: 90 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 6.5"
Compression Driver Diameter: 1"
Height (mm): 288 mm
Width (mm): 348 mm
Length (mm): 348 mm
Weight: 5.4 kg
IP Rating: IP66
Transformer: 100 V
Line Transformer Taps: 10 / 20 / 40 / 80 W
Passive Input Connection: Terminal
Speaker System: 2-way
Speaker Sensitivity (1 W/1 m): 99 dB
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 114 dB
Frequency Response Minimum: 90 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 6.5"
Compression Driver Diameter: 1"
Height (mm): 288 mm
Width (mm): 348 mm
Length (mm): 348 mm
Weight: 5.4 kg
IP Rating: IP66
