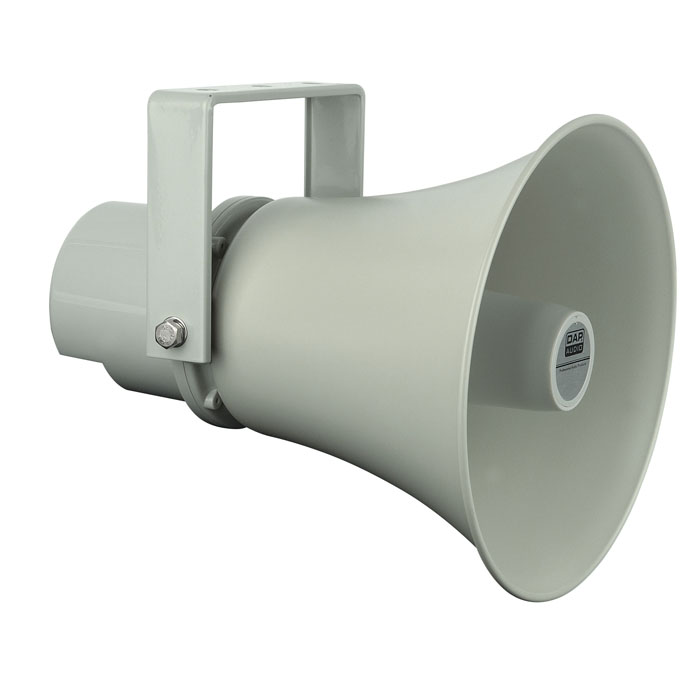

The DAP HS-30R is a light gray passive 30-watt round horn speaker suitable for public addressing. This speaker is often deployed in long-throw applications in large venues such as sport stadiums and shopping districts.
You can use the HS-30R in a 70 V/100 V installation to produce beautiful mid to high frequencies with a maximum SPL of 105 dB at 1 meter. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer. With an IP66 certification, it is suitable for outdoor applications. An included bracket makes for easy installation.
Transformer: 70+100 V
Line Transformer Taps: 3.8 / 7.5 / 15 / 30 W
Passive Input Connection: Open End
Speaker System: Horn
Speaker Sensitivity (1 W/1 m): 107 dB
Speaker Impedance: 8 Ω
Frequency Response Minimum: 380 Hz
Frequency Response Maximum: 6500 Hz
Speaker Driver Diameter: 39.5 mm
Height (mm): 250 mm
Width (mm): 245 mm
Length (mm): 290 mm
Weight: 2.1 kg
IP Rating: IP66
