DRX-10B

Passive 10" reflex subwoofer
DAPDAP
Artikelnr: D-D3643 Kategorier: , , Brand:

250 W RMS, max SPL of 121 dB SPL @ 1 m
Lightweight (15 kg)
Compact design
Handles for mobile applications
Reinforced cabinet
Driver protection
35 mm pole mount

The DAP DRX is a series of lightweight road top/sub speaker combinations available in both passive and active models, suitable for mobile DJs at small to medium sized venues. The speakers have a compact and lightweight design with a nice modern finish. The sound quality is decent with a wide full-range frequency range.

The DRX series consists of 8 to 15 inch top cabinets and 10 to 18 inch subwoofers. The passive models are incredibly lightweight, are equipped with speaker input and through connector and are suitable in combination with DAP HP amplifiers. The active models are equipped with a class AB amplifier with XLR/Jack input, volume control and on/off switch.

DRX cabinets are equipped with handles for quick and easy transport. In addition, a 35 mm pole mount adapter allows the speaker to be placed on top of a speaker or distance tube. Interested in our DAP DRX speakers? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

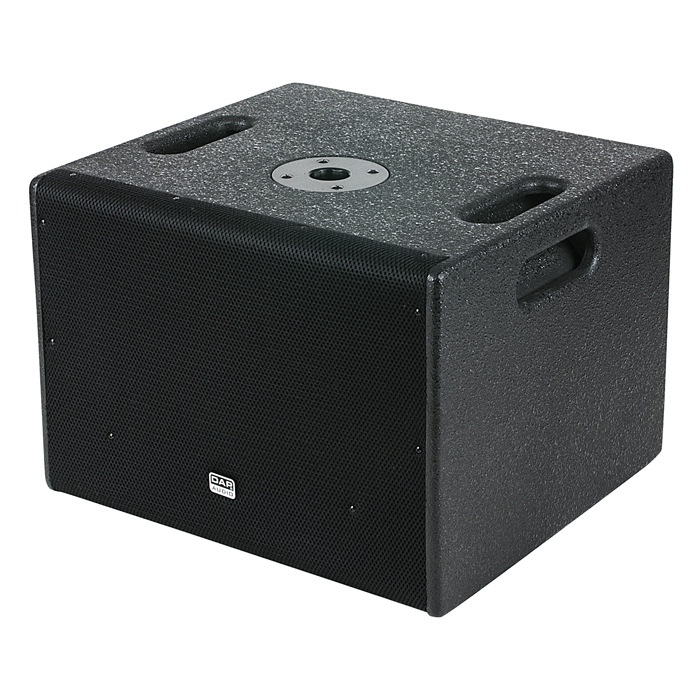

The DAP DRX-10B is a no-nonsense 10-inch passive bass reflex subwoofer for augmenting a small speaker setup. With a peak power of 500 watt (250 W RMS), it can produce up to 121 dB at 1 meter distance. The 10" woofer can transmit low frequencies from 55 Hz.

The case is made of 15 mm plywood with scratch-free black paint. A 35 mm tripod adapter makes it possible to place an intermediate post between your subwoofer and top speaker cabinet. The DRX-10B is ideal in combination with the DRX-8 for a full-range sound with a great bass sound in small locations.

A DRX installation is designed for on-the-road use and therefore lightweight, compact and equipped with handles for quick and safe transport.

RMS Input Power: 250 W
Peak Input Power: 500 W

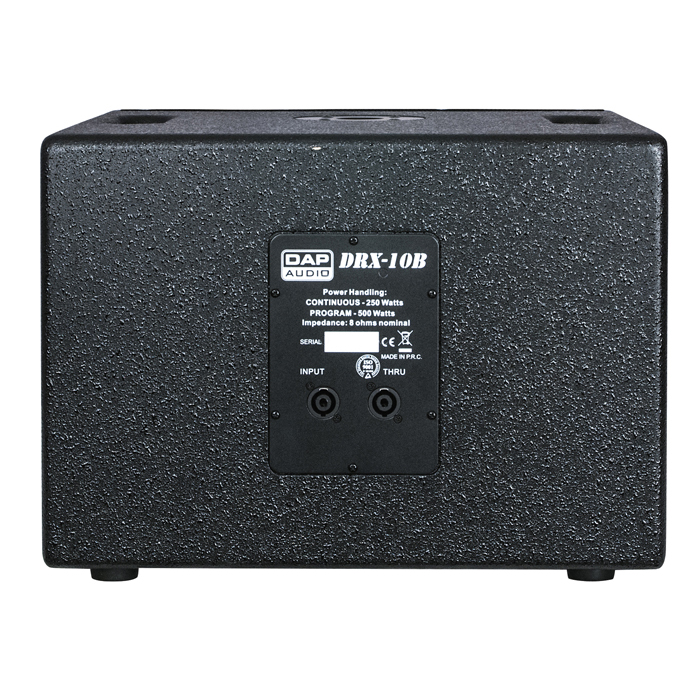

Passive Input Connection: Speaker Connector 4 pole
Speaker System: Subwoofer
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 121 dB
Frequency Response (-6 dB) Minimum: 55 Hz
Frequency Response (-6 dB) Maximum: 500 Hz
Woofer Voice Coil Diameter: 2.5"
Height (mm): 325 mm
Width (mm): 465 mm
Depth (mm): 421 mm
Material: MDF
Weight: 15.03 kg
Rigging Options: Stacking
