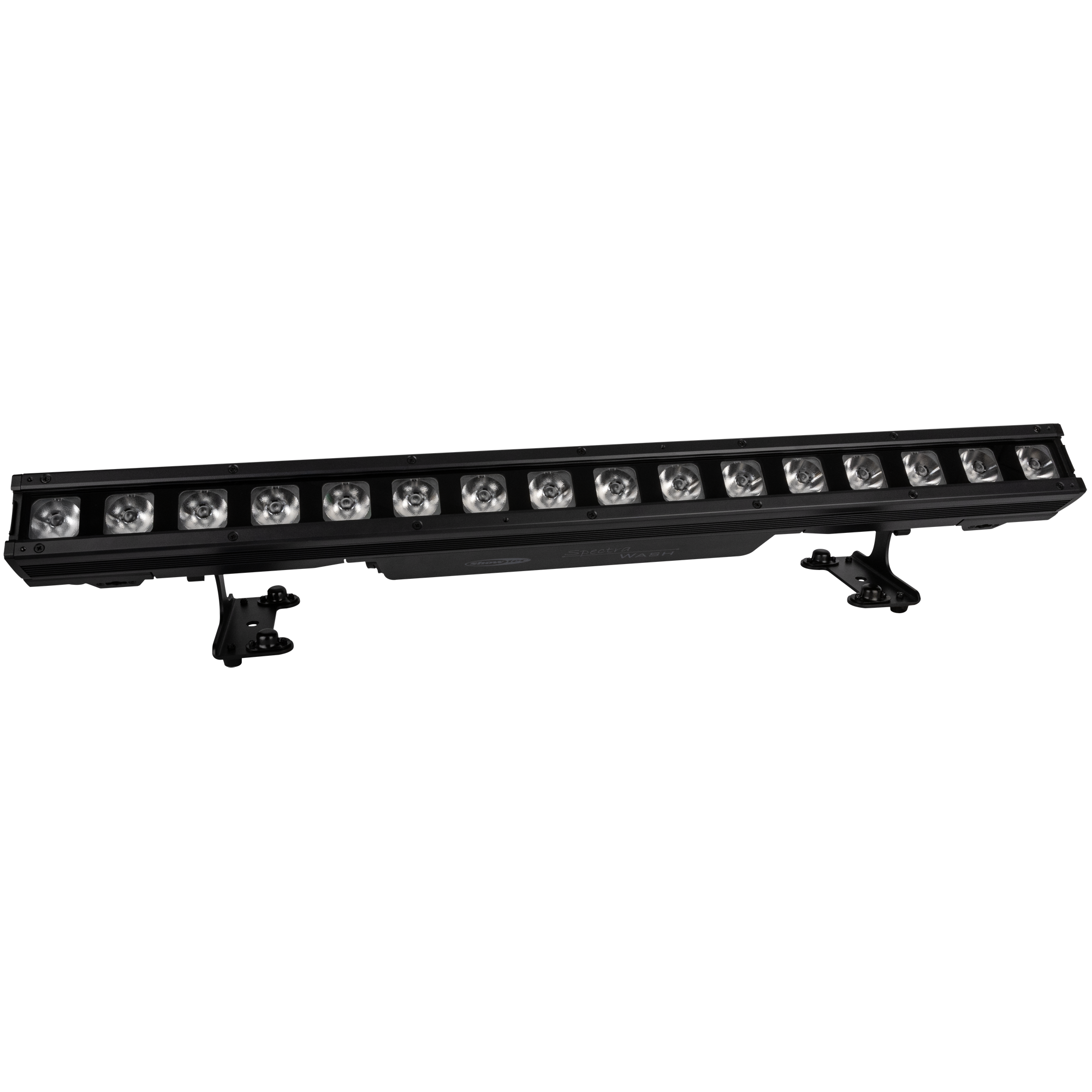

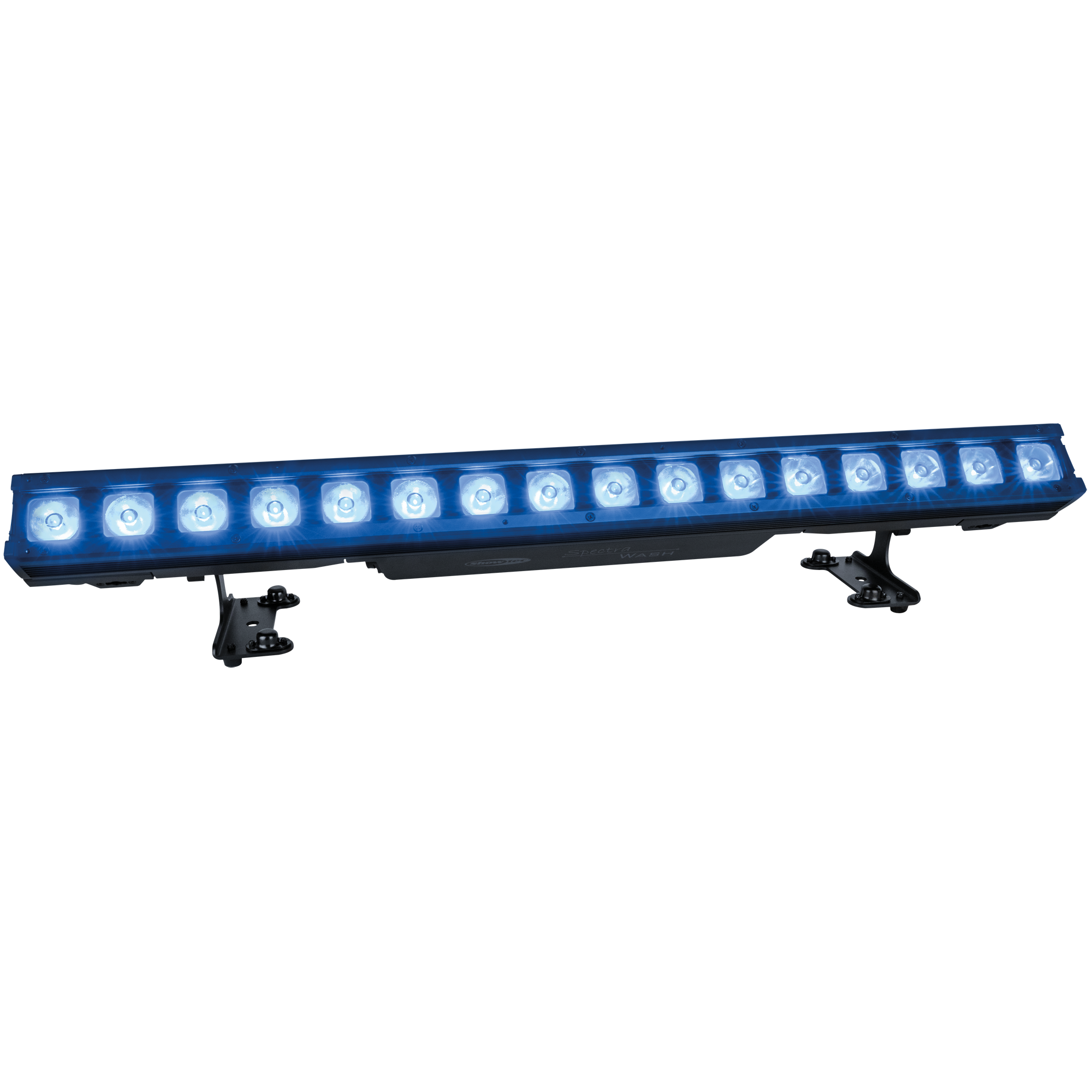

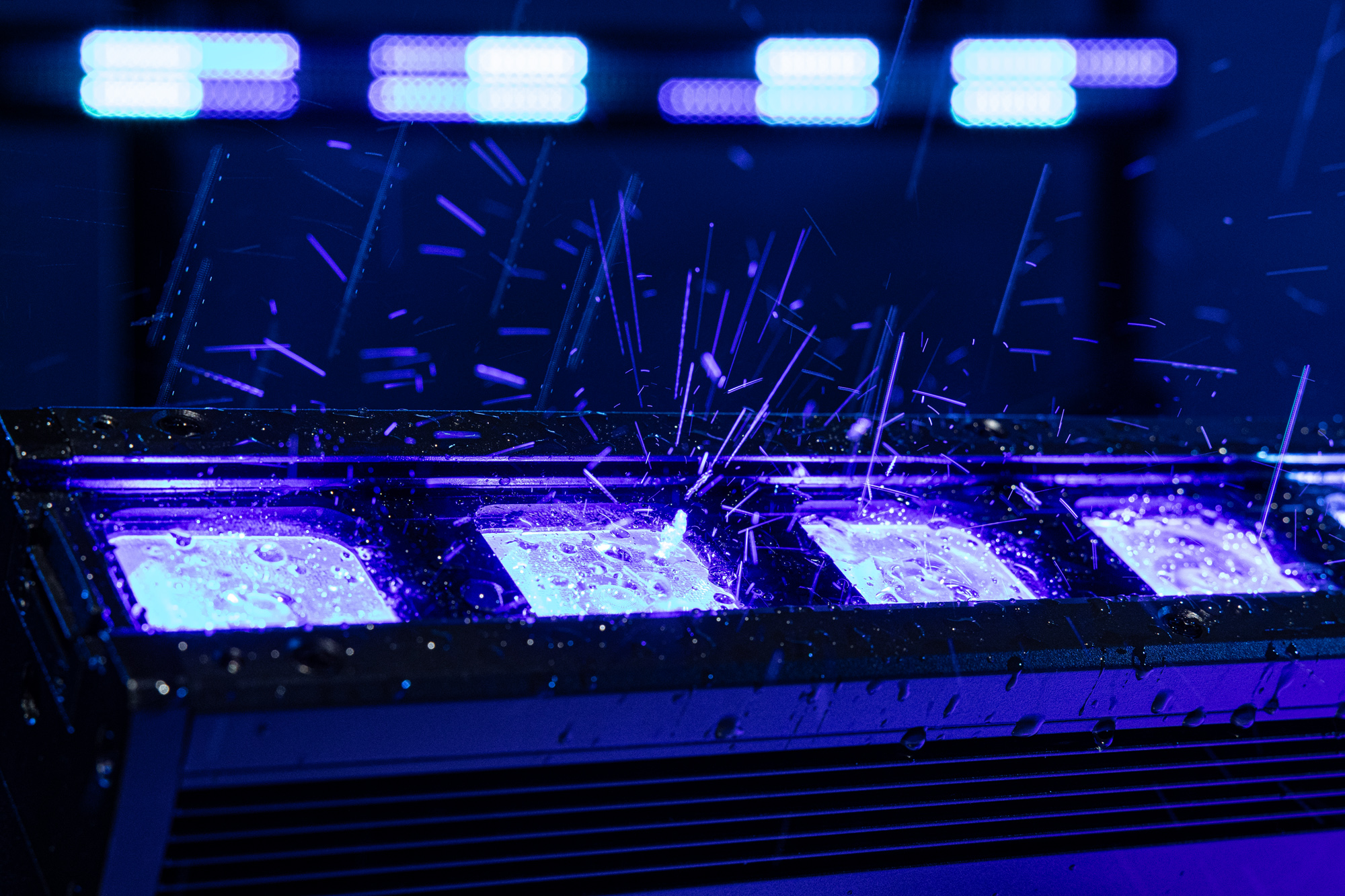

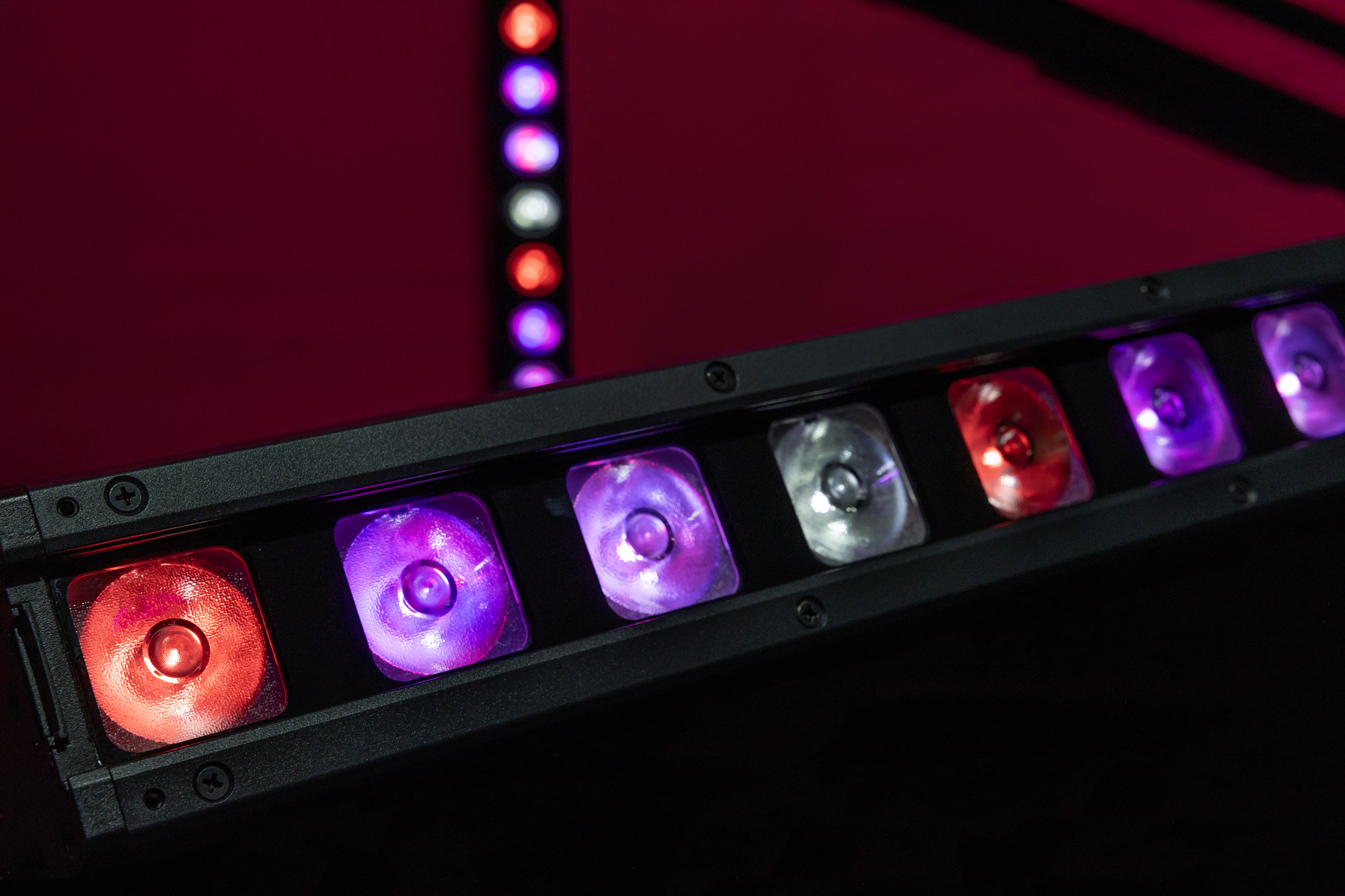

The Showtec Spectra Wash is a 1-metre-long, IP65-rated wash bar for temporary outdoor use. It has 16 20W RGBW LEDs to create powerful and colourful flash and wash effects. Each individual LED can be controlled via DMX. It has a narrow 12°beam angle and uses natural convection for cooling, making it completely silent. The optionally available beam shapers enable you to change the beam angle to 15°, 25° or 10° x 40°.

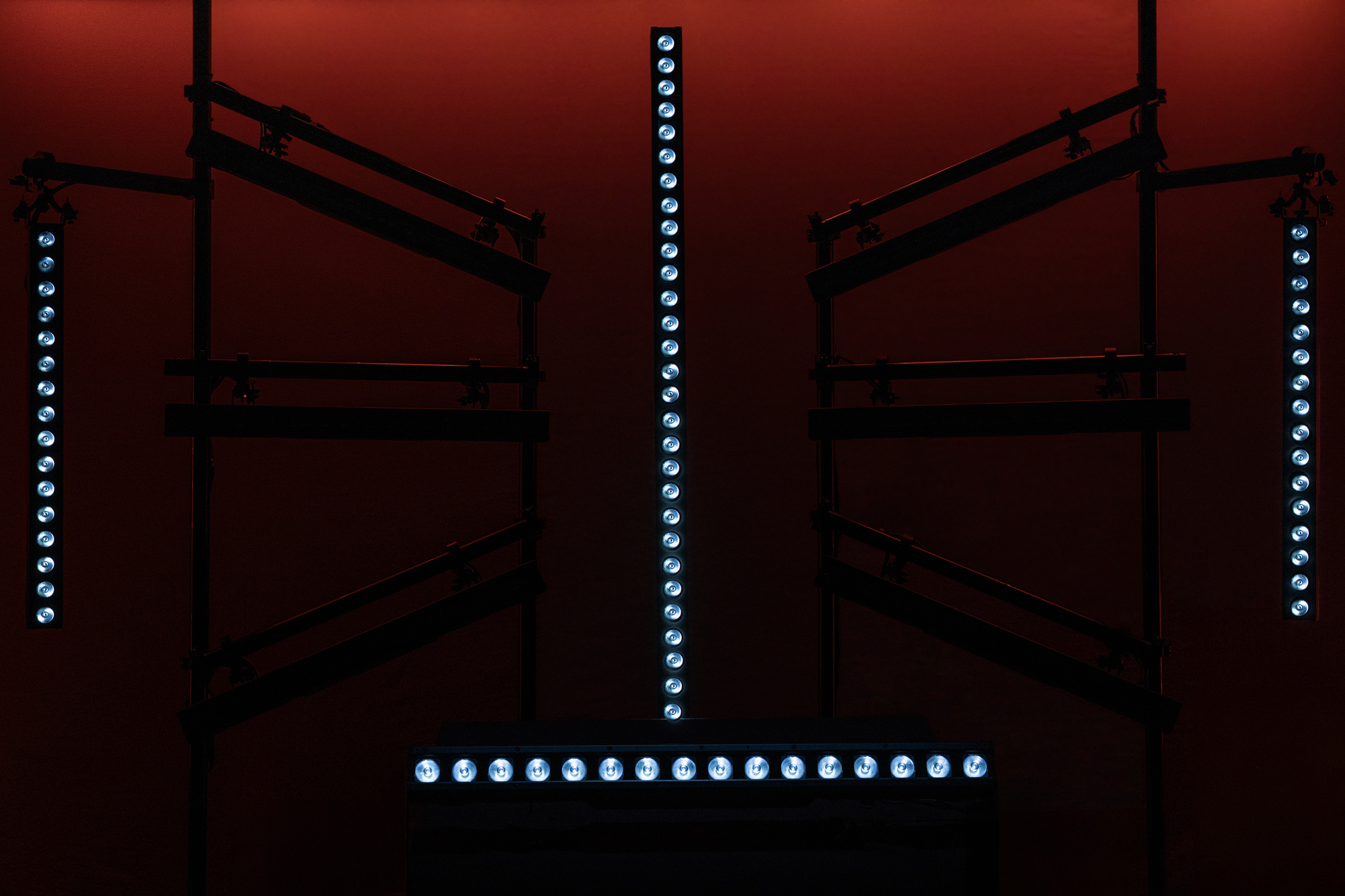

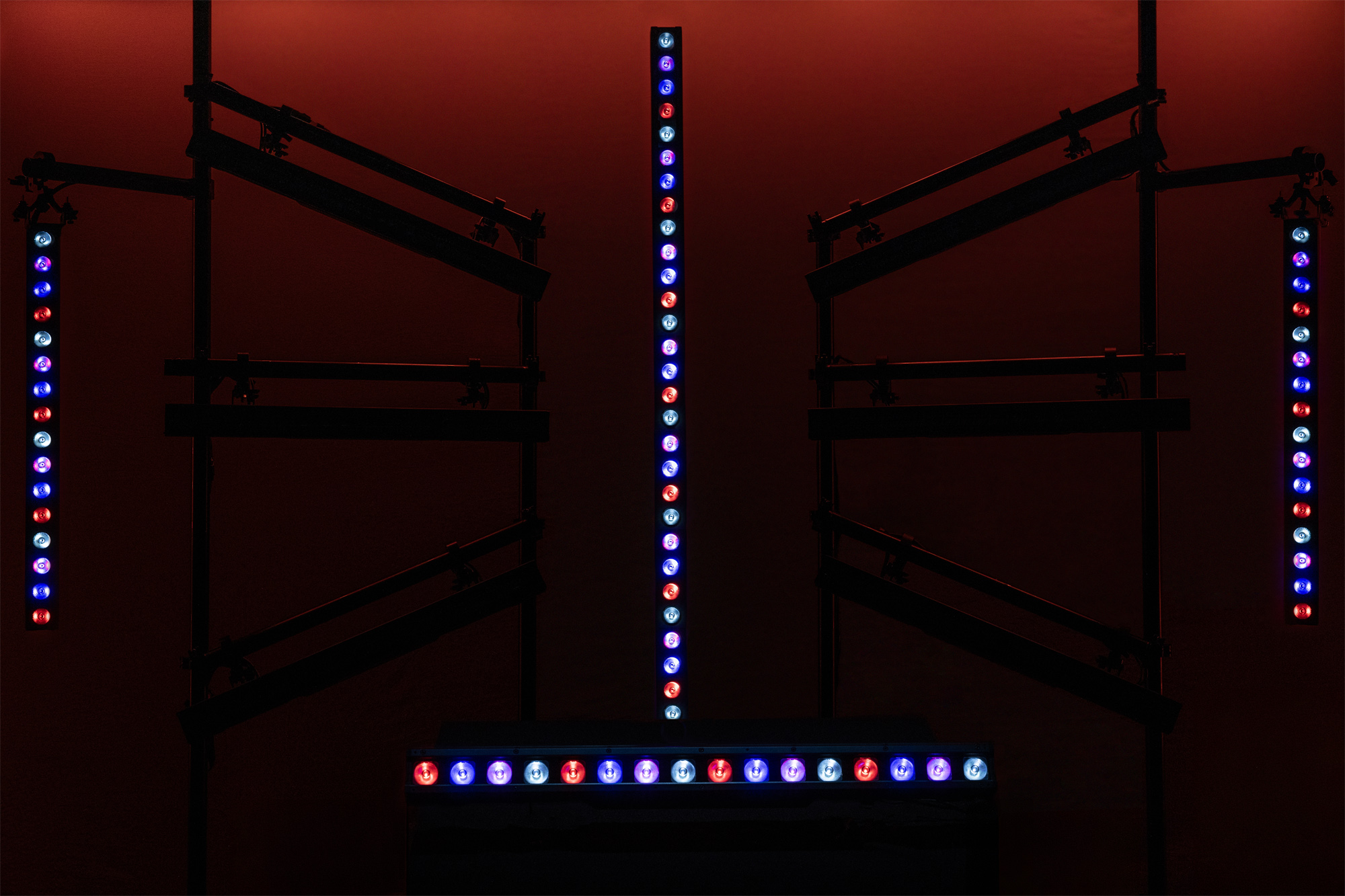

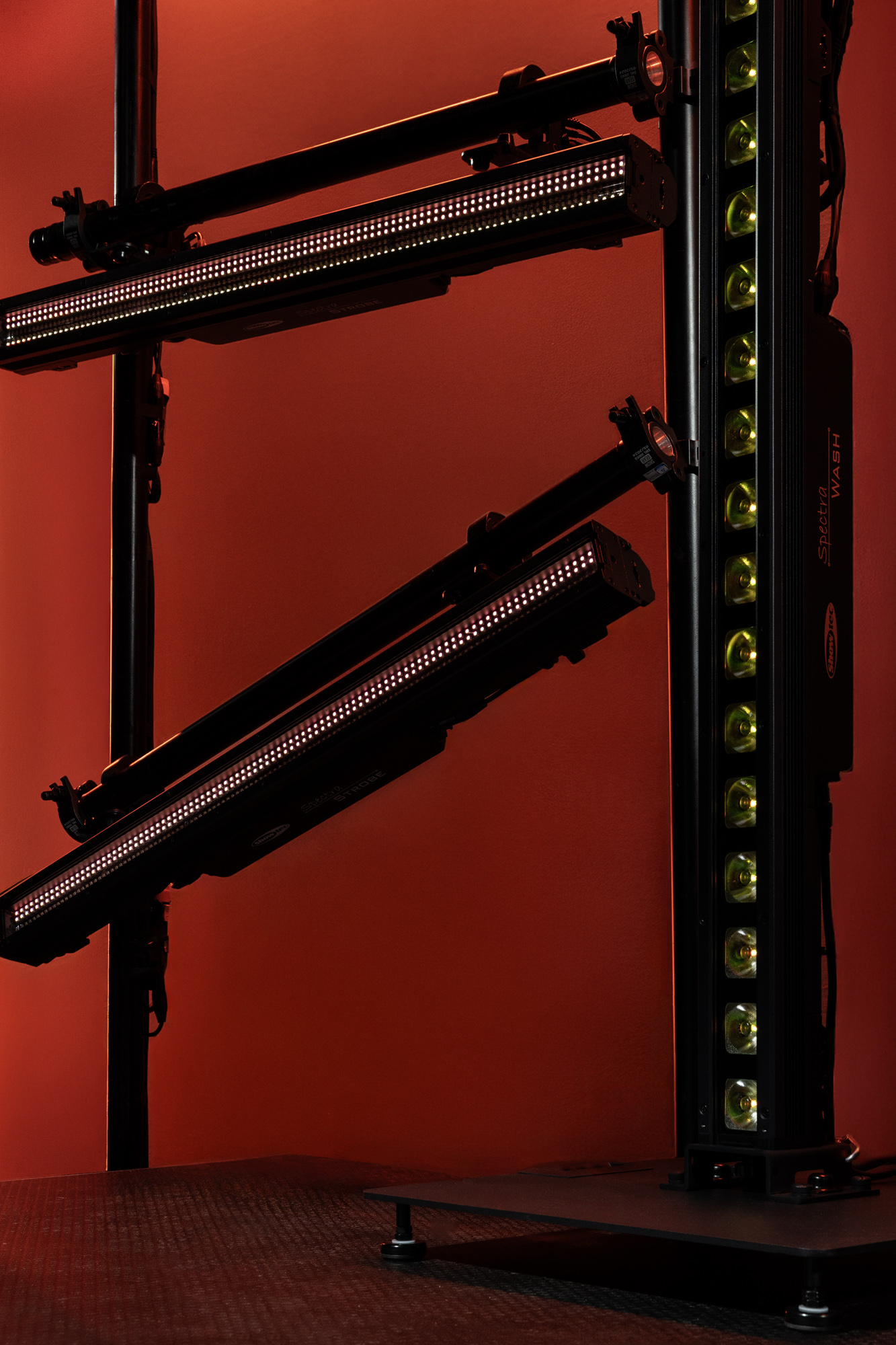

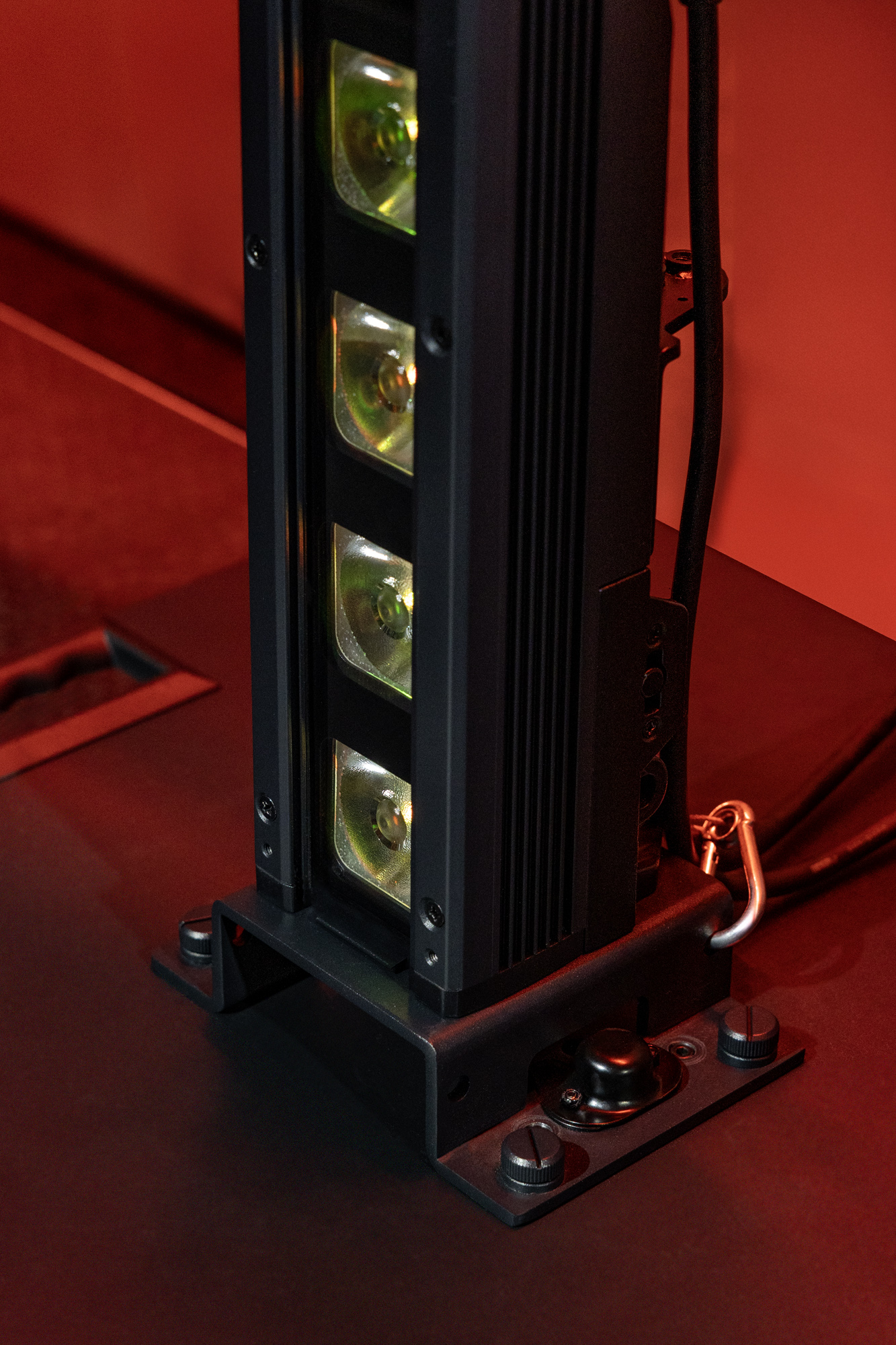

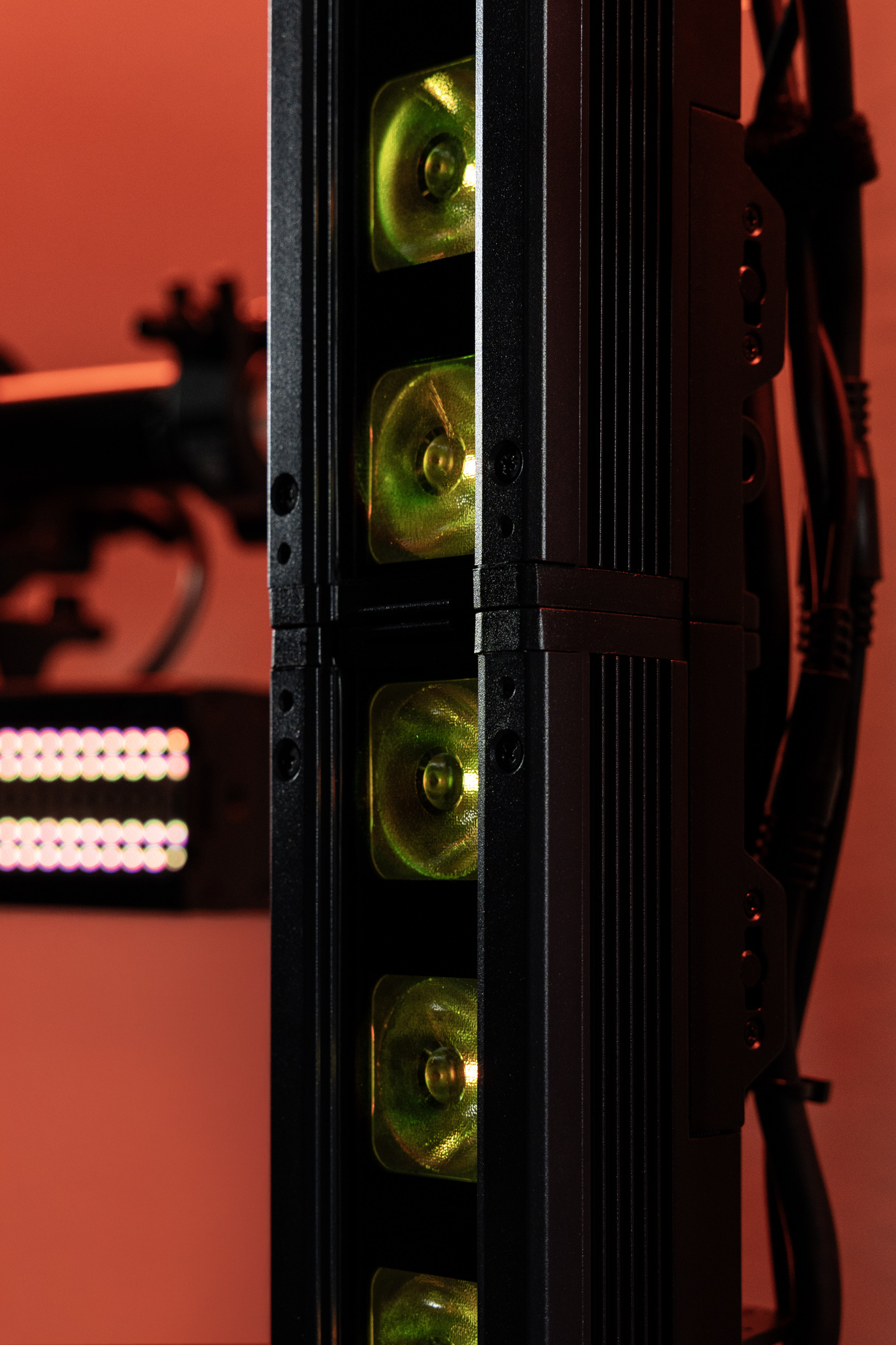

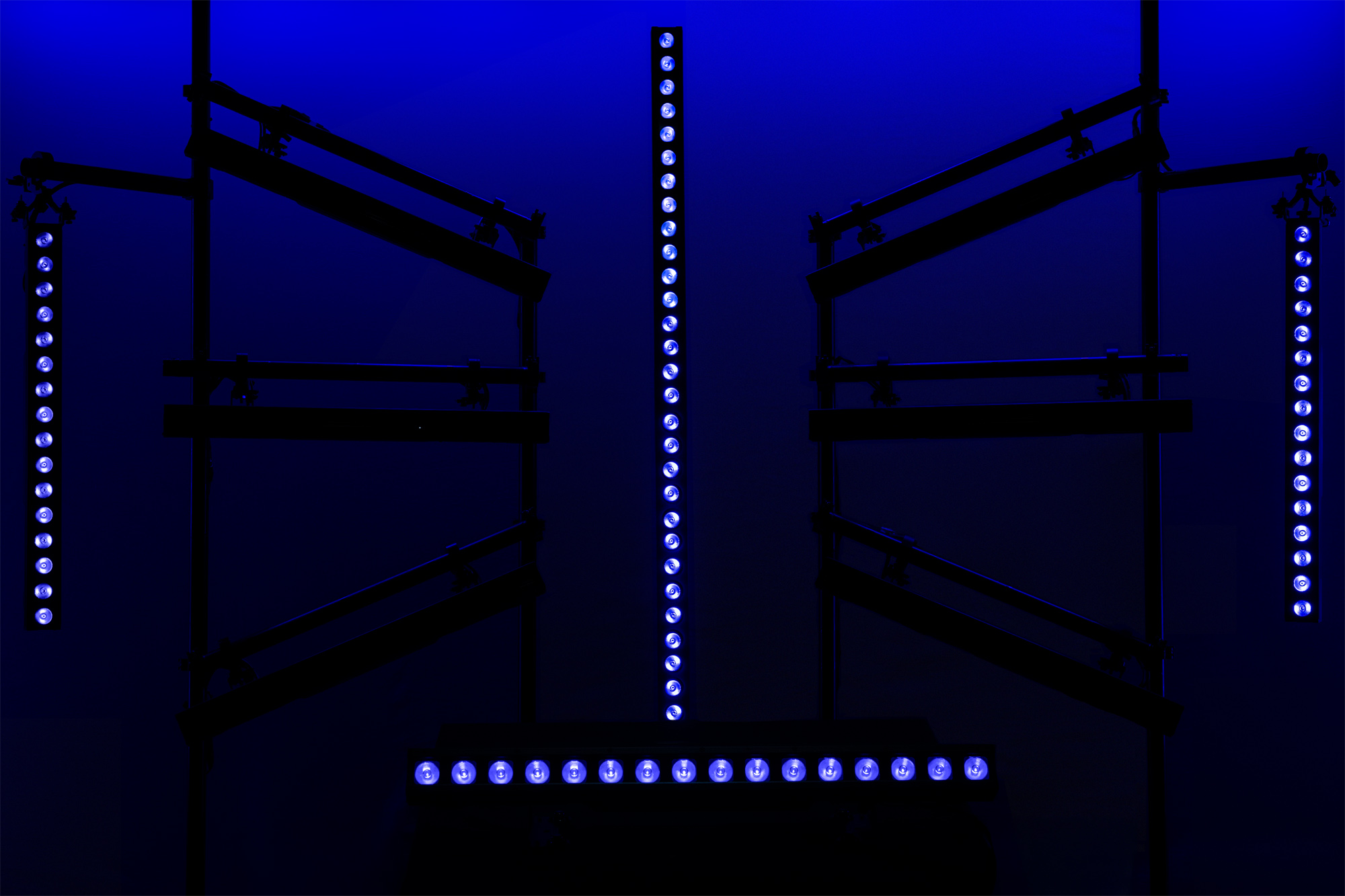

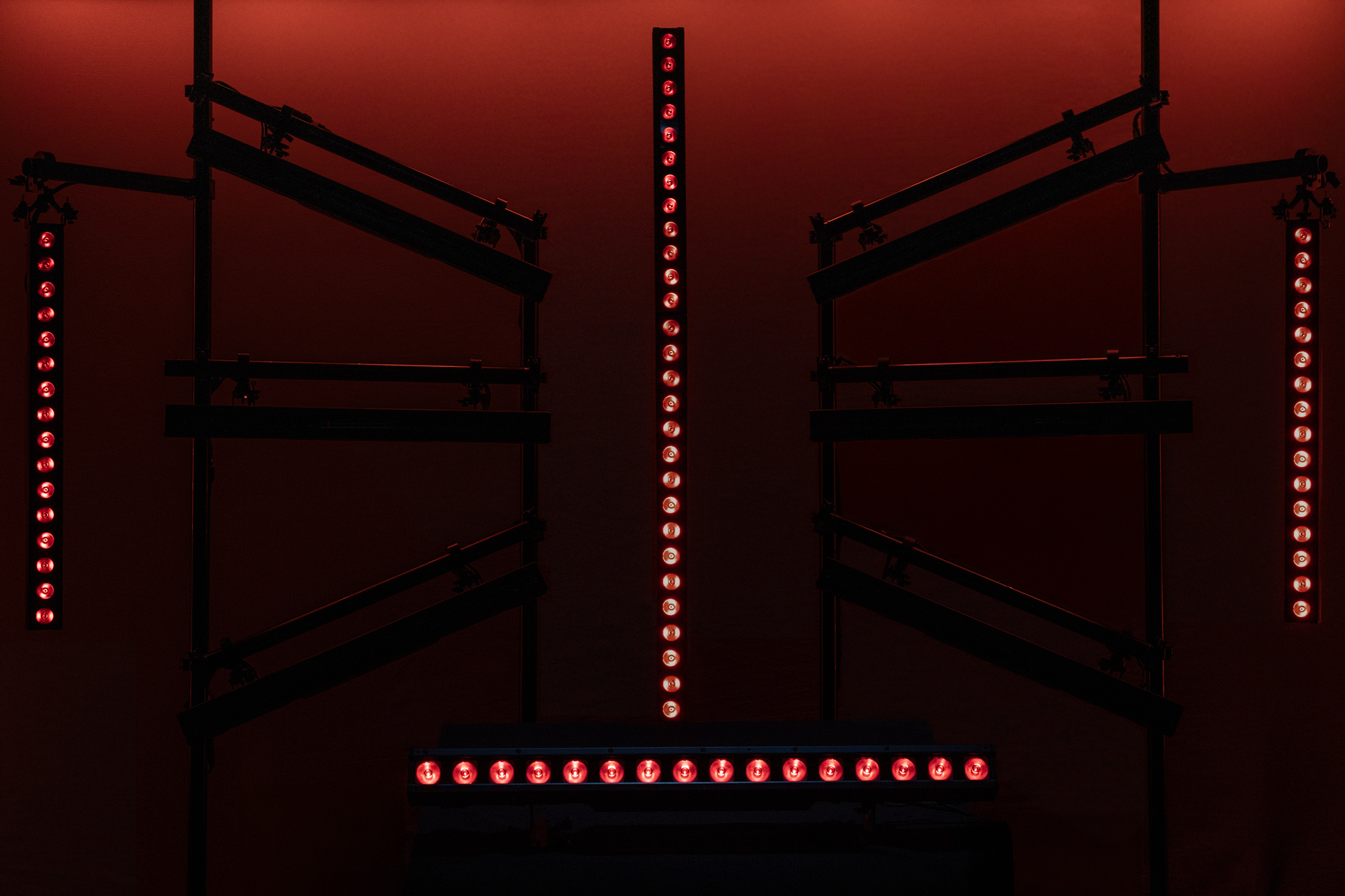

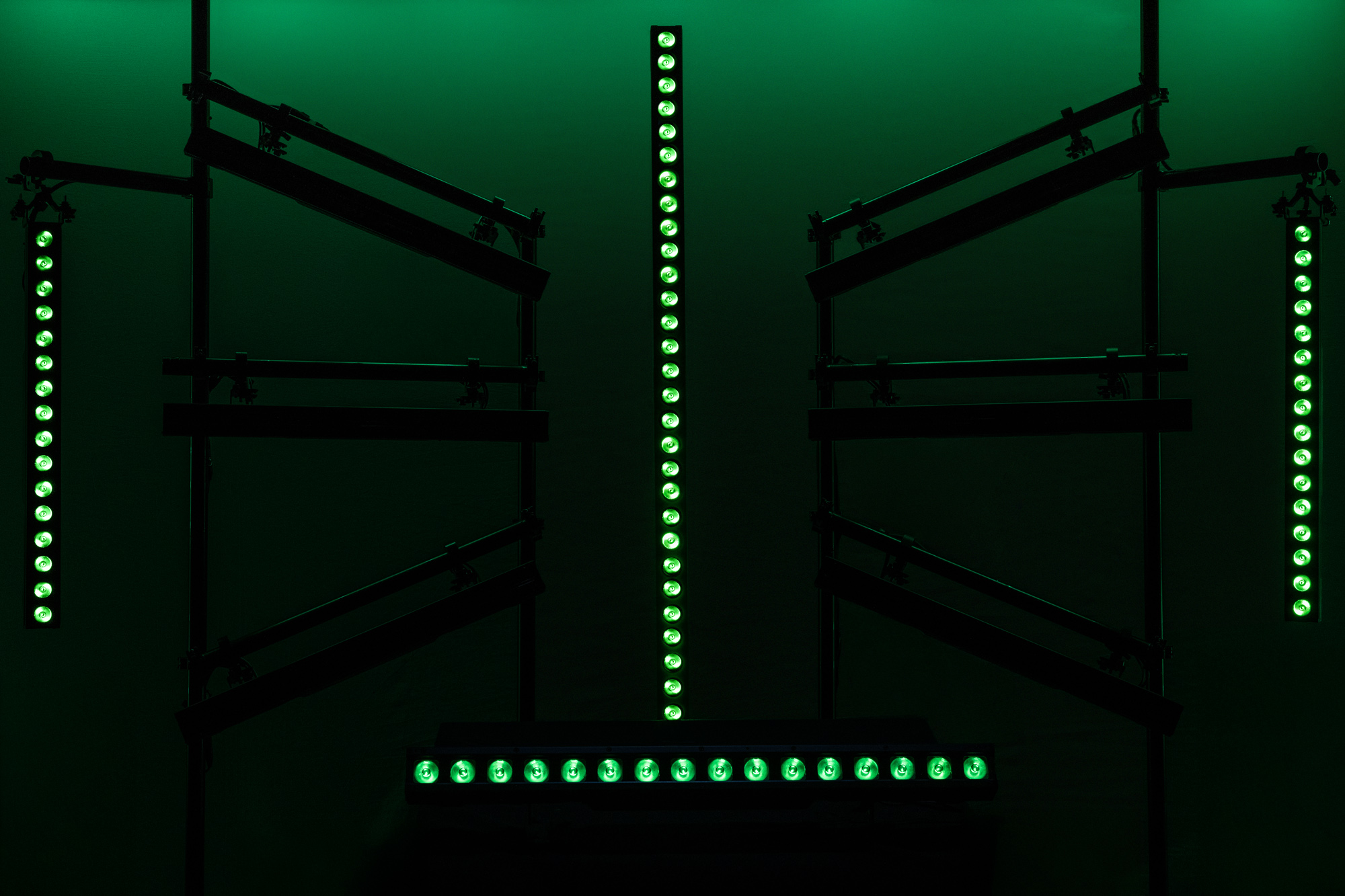

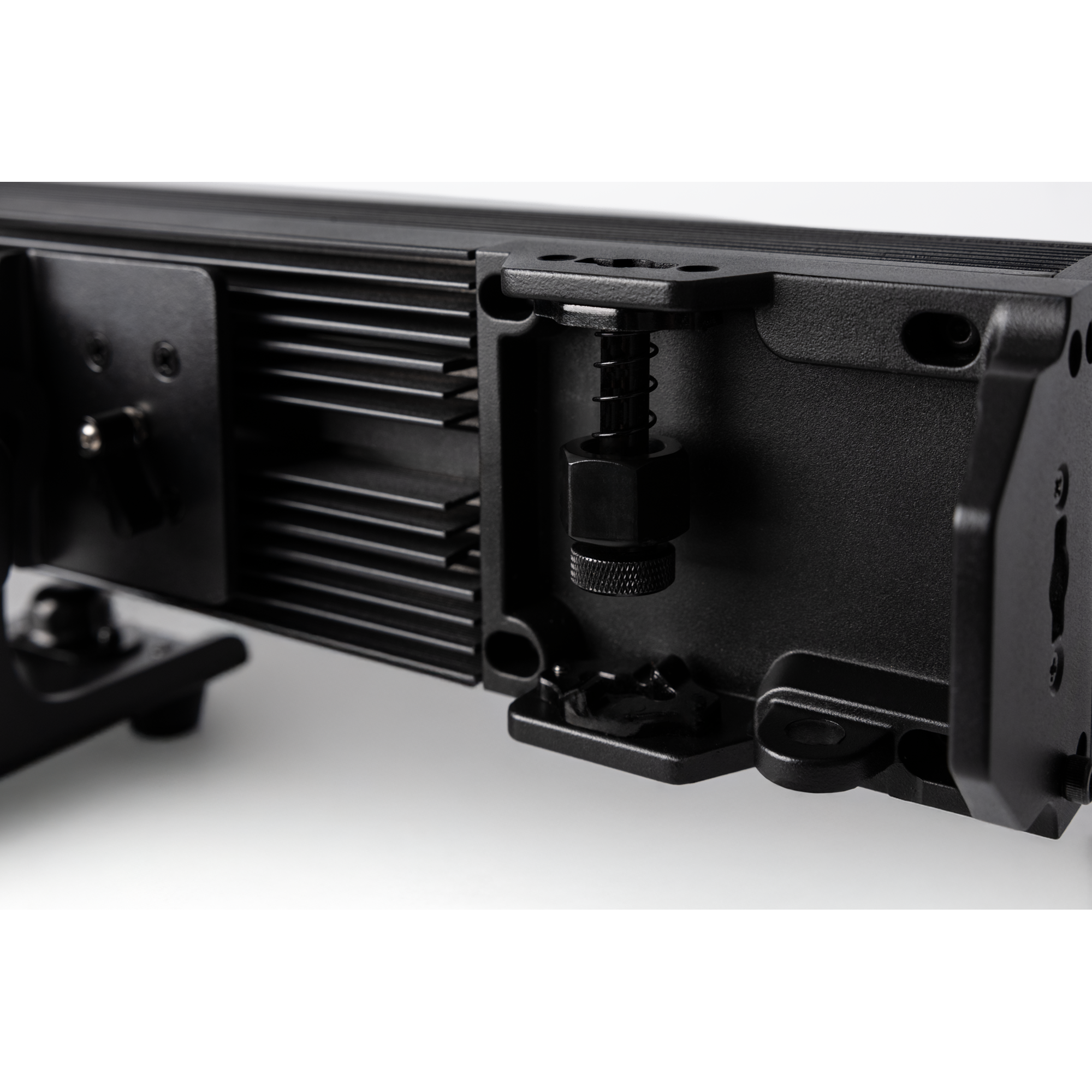

The Spectra Wash runs stand-alone with multiple built-in presets and effects, in master/slave mode and in 3-, 4-, 6-, 11-, 23-, 32-, 64- and 71-channel DMX mode with RDM support. The quick lock system allows you to easily connect multiple units in horizontal or vertical direction, or suspend the LED bar horizontally under a truss. For vertical mounting the optional Vertical Bracket for Showtec Spectra series is required. With the optional Base Plate for Showtec Spectra series and one Vertical Bracket you can stack up to two Spectra fixtures vertically on the stage floor. It is also possible to stack two LED bars or attach them to the Showtec Spectra Strobe using the quick lock system. Two quick lock brackets and a Power Pro True cable are included. Barndoors are available as an option.
Light Source Quantity: 16
Light Source Power: 20 W
LED Colour Type: RGBW
Refresh Rate: 18000 Hz
Luminous Flux (Total): 0 lm
Beam Angle (Horizontal): 12°
Beam Angle (Vertical): 12°
Control Mode: Built-in Program / DMX / Manual / Stand Alone
DMX Channels: 3 / 4 / 6 / 11 / 23 / 32 / 64 / 71
Protocols: DMX / RDM
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 345 W
Power Connector In: Power Pro True
Power Connector Out: Power Pro True
Length (mm): 1025 mm
Width (mm): 140 mm
Height (mm): 192 mm
Weight: 9.8 kg
IP Rating: IP65
Housing: Aluminium die-cast
Colour: Black
Cooling: Passive
