PDI-200
Stereo passive DI box
DAP![DAP]()
2x 6.3 mm TS Jack in, 2x balanced XLR out
Road proof housing with rubber feet
Low distortion
No power supply needed
0, 20 ,40 dB attenuation settings

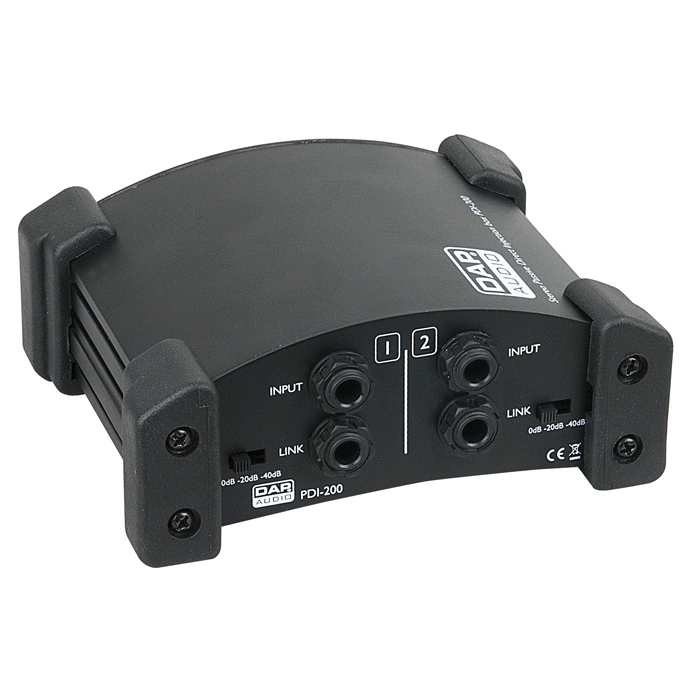

The DAP PDI-200 is a two-channel passive direct injection box. It converts a HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box.
It is suitable for a wide array of applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage. In addition, it has a 0/20/40 dB attenuation switch.
Mono Inputs: 2
Main Outputs: 2
THD Level: < 0.003 %
Signal-to-noise Ratio: > 95 dB
Crosstalk: 96 dBu
Frequency Response Minimum: 30 Hz
Frequency Response Maximum: 50000 Hz
Phantom Power: No
Main Outputs: 2
THD Level: < 0.003 %
Signal-to-noise Ratio: > 95 dB
Crosstalk: 96 dBu
Frequency Response Minimum: 30 Hz
Frequency Response Maximum: 50000 Hz
Phantom Power: No
