MHS-50S
Passive 50 W Square Horn Speaker - light gray
DAP![DAP]()
50 W peak power – 100 V – 2-way system
Six power taps (2.5, 4.5, 9, 12.5, 25, 50 W)
Suitable for outdoor use (IP66)
Robust ABS housing
Bracket included

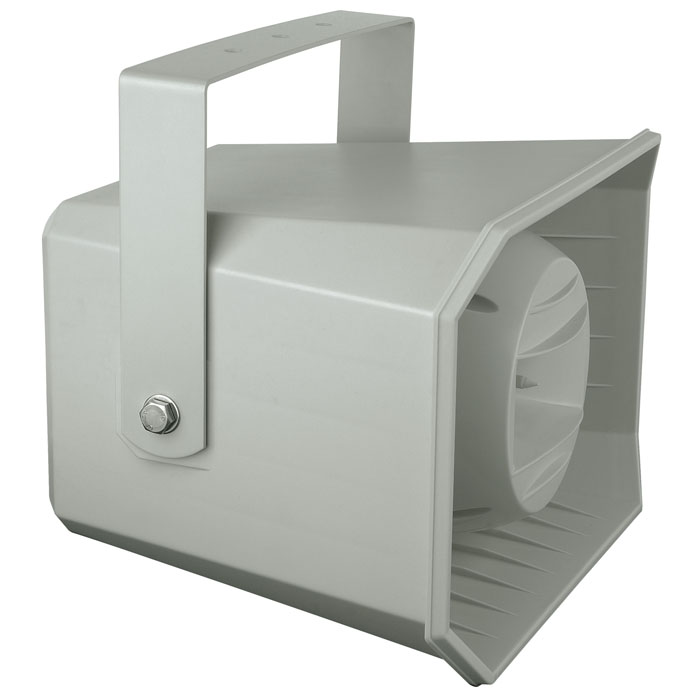

The DAP MHS-50S is a passive 50-watt square horn speaker suitable for 100 V outdoor installations in public places such as shopping malls, terraces and theme parks. This light gray installation speaker is a 2-way system with a 6.5-inch low driver and a 1" high driver for a clear full-range sound.
The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer. It has a strong ABS housing and a bracket is included.
Peak Input Power: 50 W
Transformer: 100 V
Line Transformer Taps: 2.5 / 4.5 / 9 / 12.5 / 25 / 50 W
Passive Input Connection: Terminal
Speaker System: 2-way
Speaker Sensitivity (1 W/1 m): 98 dB
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 113 dB
Frequency Response Minimum: 90 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 6.5"
Compression Driver Diameter: 1"
Dispersion Angle (Horizontal): 105°
Dispersion Angle (Vertical): 140°
Height (mm): 31 mm
Width (mm): 253 mm
Length (mm): 363 mm
Weight: 3.9 kg
IP Rating: IP66
