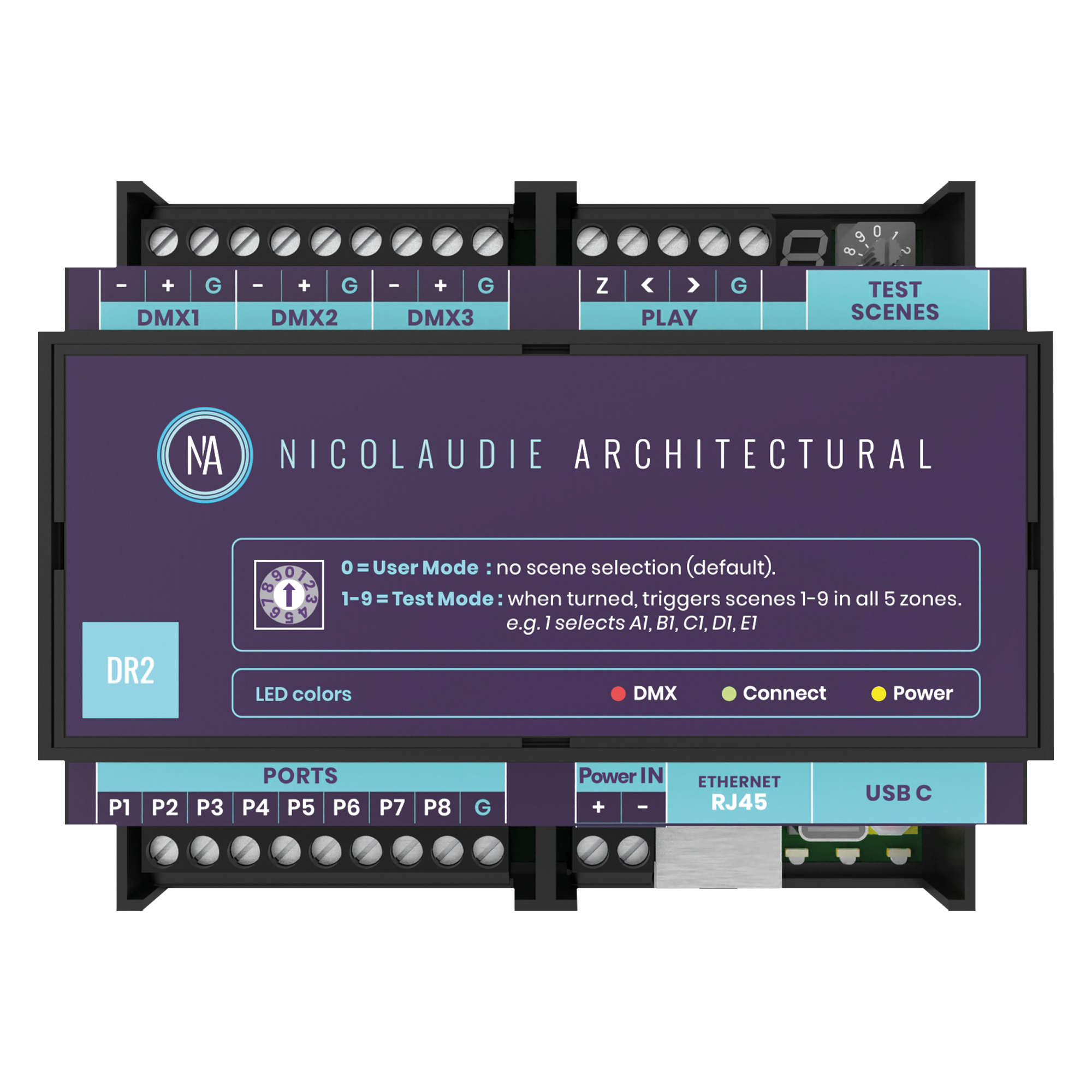

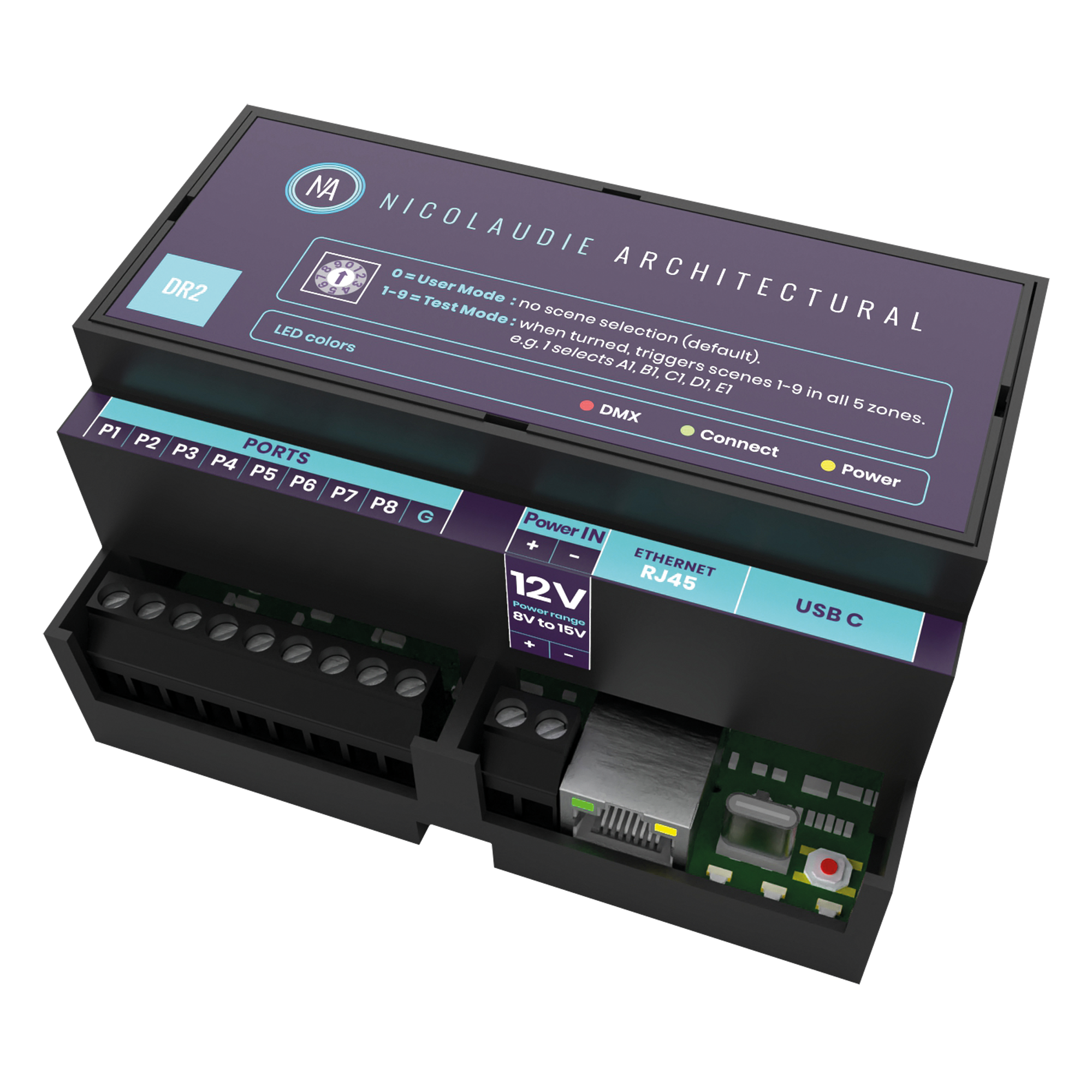

The Nicolaudie DINA-DR2 is a standalone DMX controller for DIN rail mounting. Typical applications are fixed installations in museums, theme parks, etc. The DINA-DR2 has 2 DMX universes for controlling up to 1024 channels via 2 output terminals and can be upgraded to control up to 3 universes (1536 channels). It supports up to 5 zones and 99 scenes that can be stored on a microSD card. Scenes can be triggered automatically, time-based or via 11 GPIO inputs. An optional backup battery provides power to store the date, time and last scene played in the event of a power failure.
Lighting levels, colours and effects can be programmed and controlled via PC or Mac using the free ESA2 or ESA Pro 2 software, or via iPhone/iPad/Android using the Arcolis apps. It can be connected via USB-C or Ethernet.
