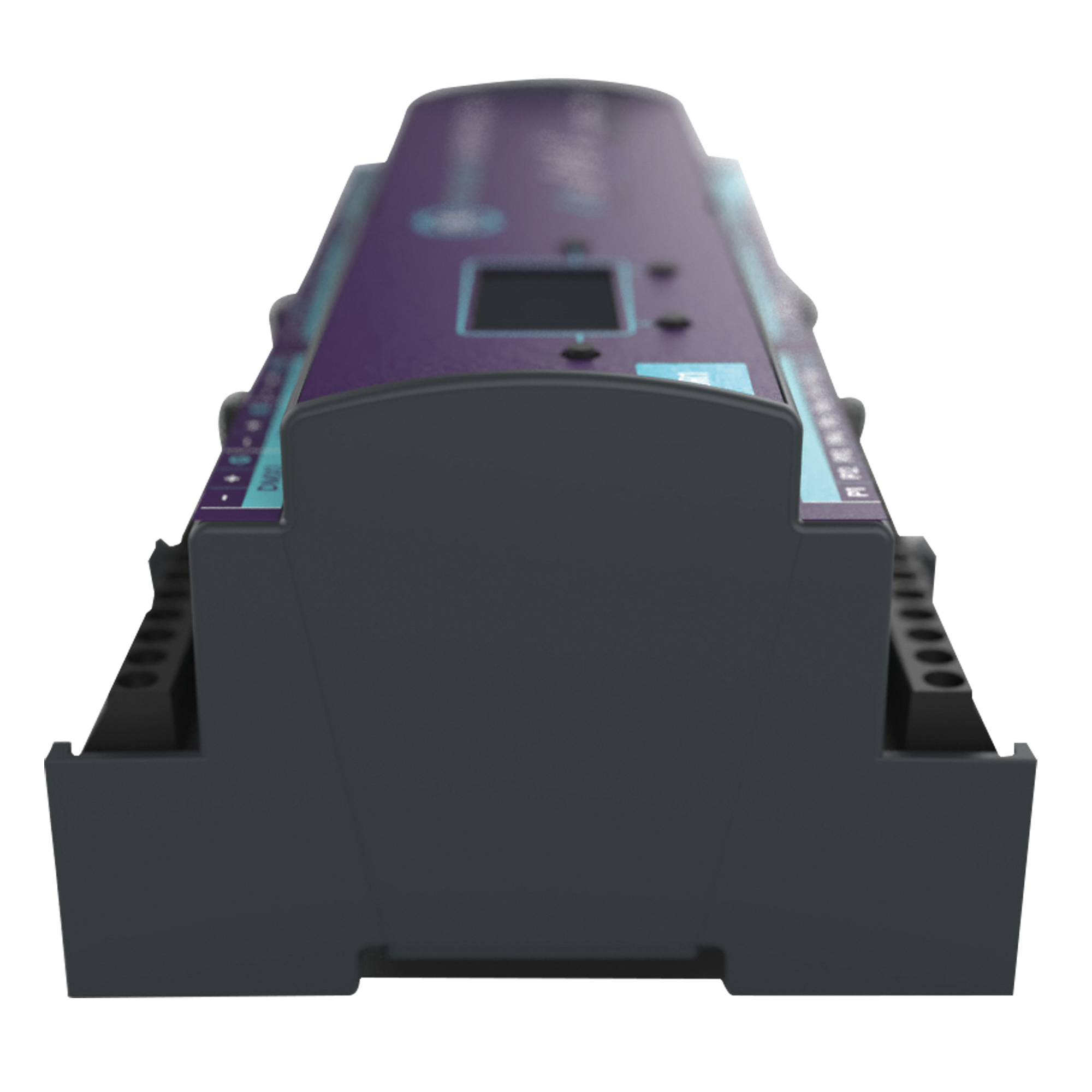

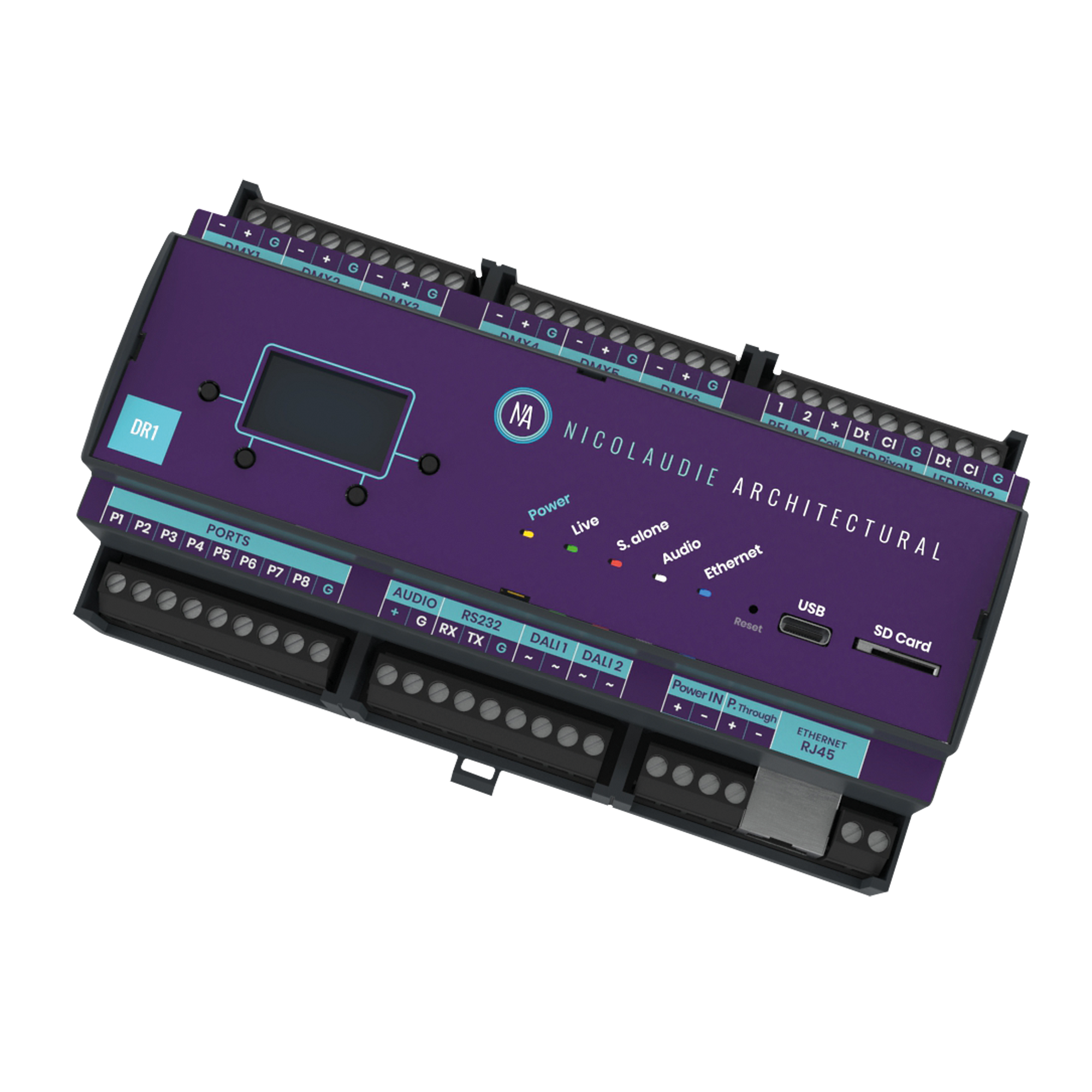

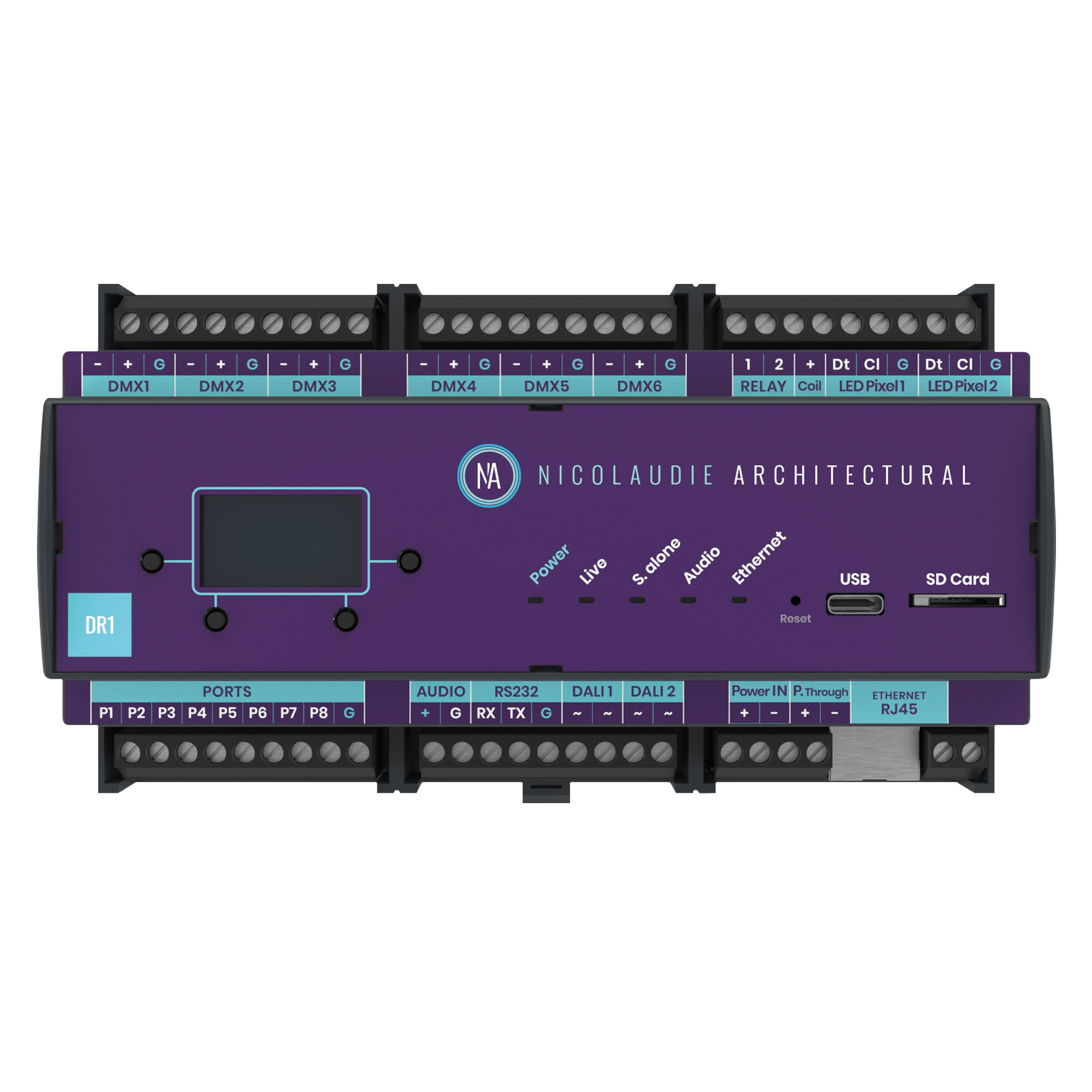

The Nicolaudie DINA-DR1 is a standalone DMX controller for DIN rail mounting. Typical applications are fixed installations in museums, theme parks, etc. The DINA-DR1 has 6 DMX universes for controlling up to 3072 channels via 6 output terminals, Art-Net or sACN, and can be upgraded to control up to 12 universes (6144 channels) via Art-Net or sACN. It supports up to 20 zones and 2000 scenes that be stored on 16MB internal flash memory or microSD card. Scenes can be triggered automatically, time-based, via RS-232, low-level audio or 8 GPIO inputs. An optional backup battery provides power to store the date, time and the last scene played in the event of a power failure.
The DINA-DR1 can act as a DALI master with two bus outputs. It also has two SPI outputs and two terminals for relay control. Lighting levels, colours and effects can be programmed and controlled from a PC or Mac using the free ESA2 or ESA Pro 2 software, or from an iPhone/iPad/Android using the Arcolis apps. It can be connected via USB-C or Ethernet.
