CA-4150
Configurable built-in crossover for top-sub combination
Class D amp, SMPT and Soft Start technology
Advanced protection circuits & indicator LEDs
Stereo and bridge mode
1U suitable for 19″ rack

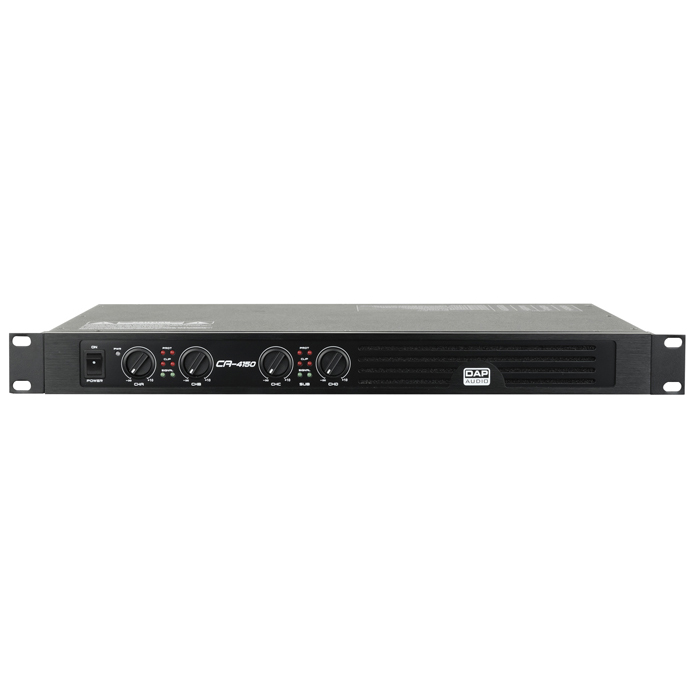

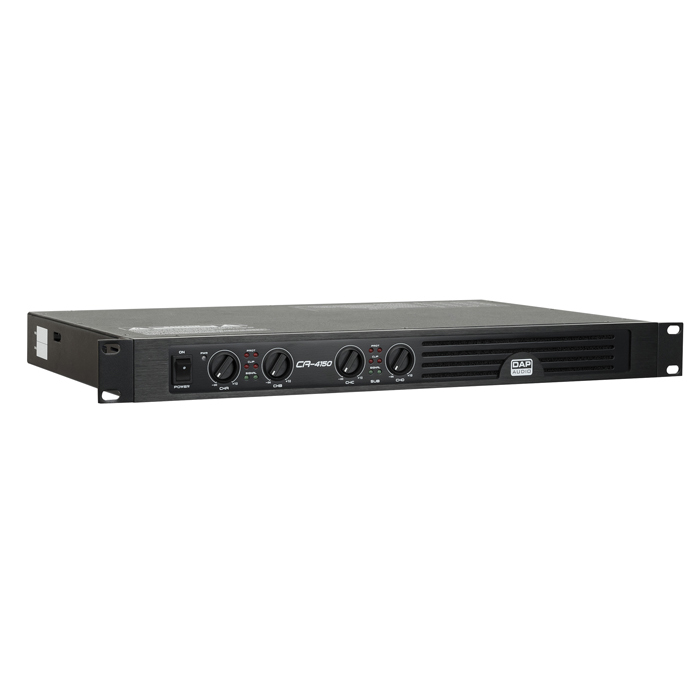

The DAP CA-4150 is a 4x 150 watt amplifier with configurable built-in Crossover. Equipped with Class D technology and SMPS, the CA-4150 has all the necessary functionalities for today's user.
This 4-channel model has terminal inputs and outputs with the option to switch between stereo and bridge mode. In addition, the gain is adjustable per channel.
When a channel signal is causing distortion, a LED signal is indicating you to decrease the source signal level. It is not only protected from clipping, but also from overloading and overheating due to soft start technology. The CA-4150 can be built into a 19-inch rack case and has a 1 unit height.
Output per Channel into 8 ohms at 1 kHz: 90 W
Output per Channel into 4 ohms at 1 kHz: 150 W
Output per Channel into 2 ohms at 1 kHz: 230 W
Bridge Output into 8 ohms at 1 kHz: 190 W
Bridge Output into 4 ohms at 1 kHz: 275 W
Output Channels: 4
Output Mode: 4-channel / Bridge / Stereo
Output Connector: Terminal
Mono Input Connector: Terminal
THD Level: < 0.1%
Signal-to-noise Ratio: > 96 dB
Slew Rate: 15 V/μs
Amp Technology: Class D
Damping Factor: 180 :1
Frequency Response Minimum: 20 Hz
Frequency Response Maximum: 20000 Hz
Crossover Filter Types: Built-in Crossover
Power Supply: 220V-240 VAC 50 Hz
Power Consumption: 636 W
Height (mm): 44 mm
Width (mm): 484 mm
Length (mm): 281 mm
Rack Units: 1 U
Weight: 4.85 kg
Electronic Protection: Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart / Thermal
