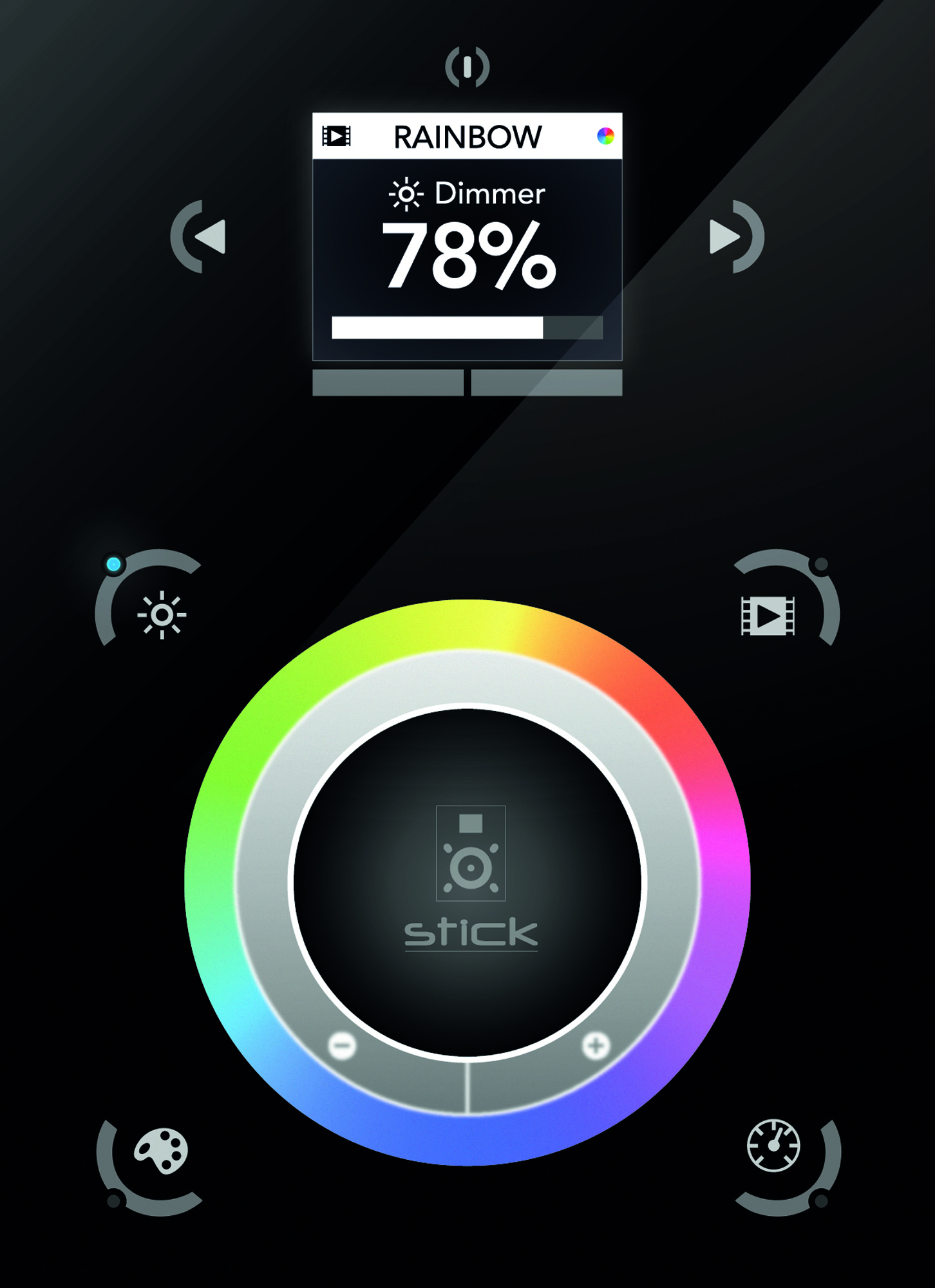

Stick-DE3

Compact wall mount DMX controller
NICOLAUDIE ARCHITECTURALNICOLAUDIE ARCHITECTURAL

Compact wall mount DMX controller
Touch sensitive buttons
Easy to operate
1024 DMX channels (2x universes)
RS-232 / 8 GPIO inputs / Clock & Calendar function

The Stick-DE3 is a compact, wall-mounted DMX controller that’s ideal for permanent installations. With touch-sensitive buttons for scene, dimmer, speed and colour control, the Stick-DE3 is easy to use even on the most demanding projects. The integrated graphical colour display enables you to easily select the preferred scene without having to dive into menus.

Depending on the mode selected, the touch-sensitive wheel can be used to change dimmer, speed and colour value settings. In standalone mode, up to 10 zones and 500 scenes can be controlled by the Stick-DE3. With the available software, lighting levels, colours and effects can be programmed with a PC, Mac, Android device, iPad or iPhone. The Stick-DE3 controller can also be operated remotely using a NATOUCH-1 connected to the same network.

Supported Operating Systems: Mac / Windows
Control Mode: IR / PC Software / RS232 / Stand Alone / Timer
DMX Channels: 1024
Universes: 2
Power Supply: 7 V DC
Power Consumption: 2.5 W
Power Connector In: Phoenix / RJ45
DMX Connector Out: Phoenix / RJ45
Data Connector In: Dedicated data connector / RJ45 / USB C
Data Connector Out: Dedicated Data Connector / Phoenix / RJ45 / USB C
Length (mm): 146 mm
Width (mm): 106 mm
Height (mm): 11 mm
Weight: 0.247 kg
Housing: Plastic
Colour: Black
