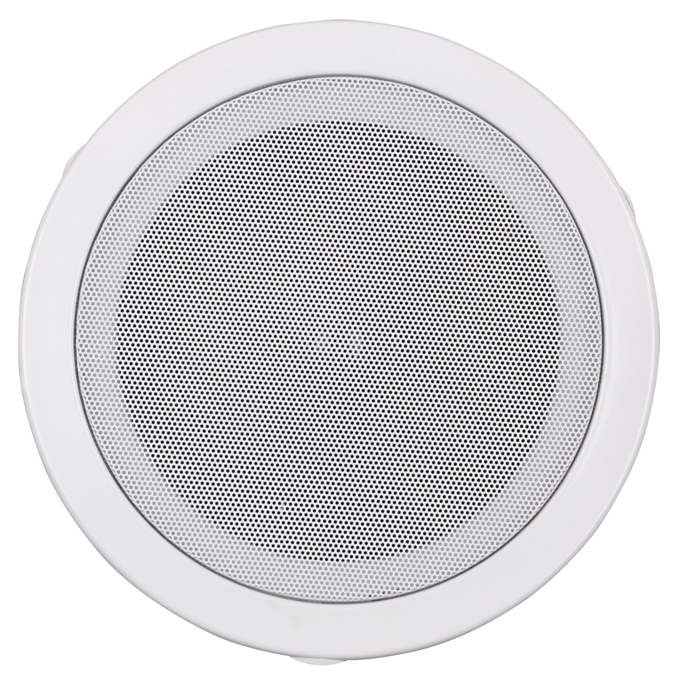

CS-520
20 W peak power – 100 V
Three power taps (5, 10 and 20 W)
Increased Presence in mid range for More Clarity in sound
Integrated clamps
Mounting size: Ø 170 mm
The DAP CS-520 is a passive 5-inch ceiling speaker suitable for 100 V installations. This white 20-watt recessed speaker has a slightly increased presence in the mid-range frequencies (4–6 kHz) for better clarity and definition of the sound. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer.
The CS-520 has a strong ABS housing that can be mounted easily in a Ø 170 mm hole due to its integrated clamps.

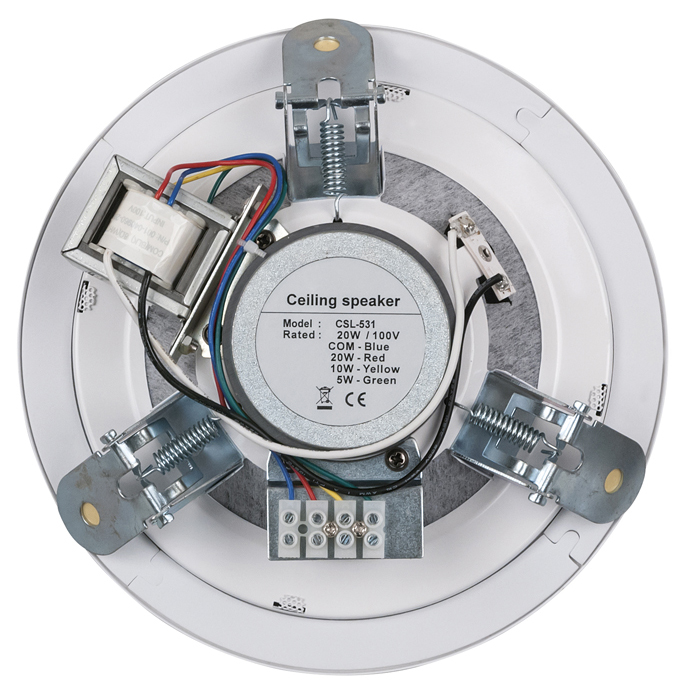

Transformer: 100 V
Line Transformer Taps: 5 / 10 / 20 W
Passive Input Connection: Open End
Speaker Sensitivity (1 W/1 m): 94 dB
Frequency Response Minimum: 110 Hz
Frequency Response Maximum: 15000 Hz
Woofer Diameter: 5"
Height (mm): 50 mm
Width (mm): 200 mm
Length (mm): 200 mm
Weight: 0.7 kg
IP Rating: IP20 (indoor use only)
Mounting Size: Ø 170 mm
