PSU-510P
Passive 5" Unidirectional Projector Speaker - white
DAP![DAP]()
10 W peak power – 100 V
Three power tabs (2.5, 5 and 10 W)
Protected against dust ingress and water jets (IP55)
Robust ABS housing
Bracket included

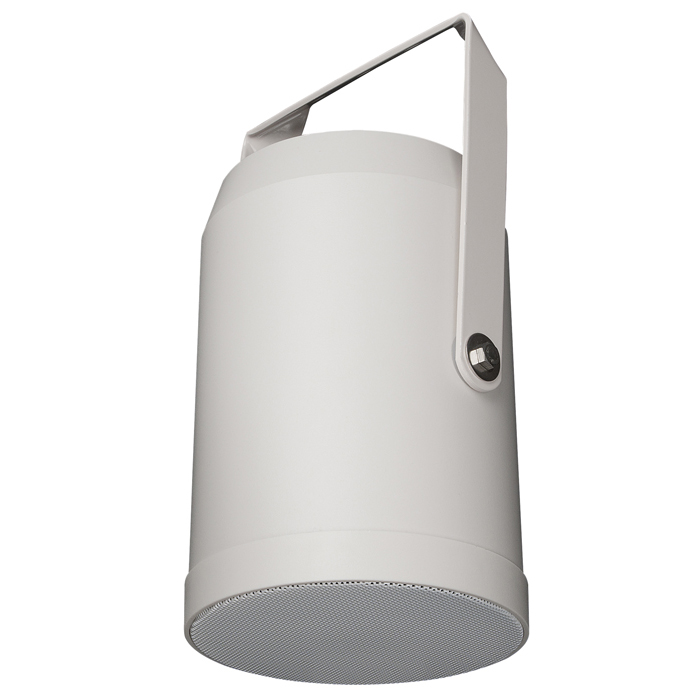

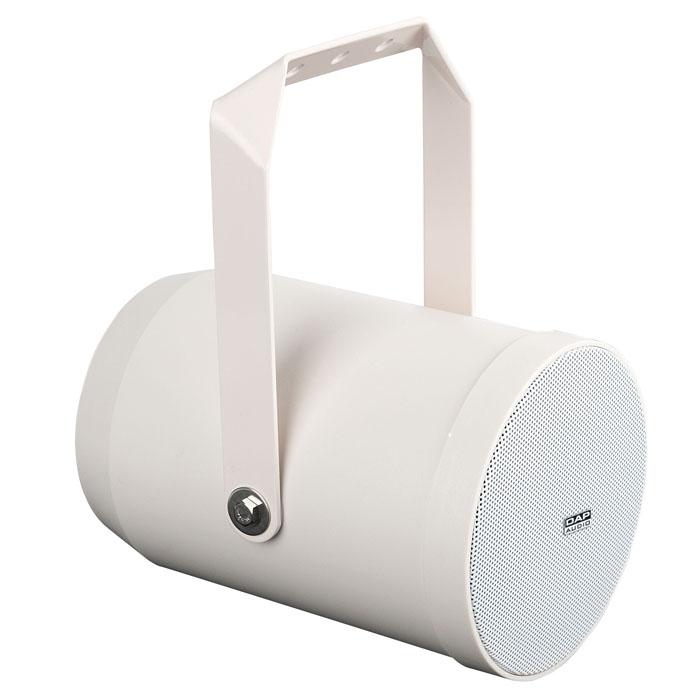

The DAP PSU-510P is a 5-inch passive unidirectional projection speaker suitable for a 100 V audio infrastructure. This white 10-watt speaker is ideal for retail and other fixed installations that require a long lifespan and strong reliability. It is well protected from dust ingress and water splashes (IP55) and therefore suitable for outdoor locations. A bracket is included.
Peak Input Power: 10 W
Transformer: 100 V
Line Transformer Taps: 2.5 / 5 / 10 W
Passive Input Connection: Open End
Speaker System: Coaxial
Speaker Sensitivity (1 W/1 m): 91 dB
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 100 dB
Frequency Response Minimum: 130 Hz
Frequency Response Maximum: 15000 Hz
Woofer Diameter: 5"
Height (mm): 235 mm
Width (mm): 155 mm
Length (mm): 240 mm
Weight: 1.6 kg
IP Rating: IP55
