EVO 6
Full-range 2-way audio set for excellent Hi-Fi quality
70 W RMS, max SPL: 114 dB @ 1 m each
Suitable for outdoor use (IP54)

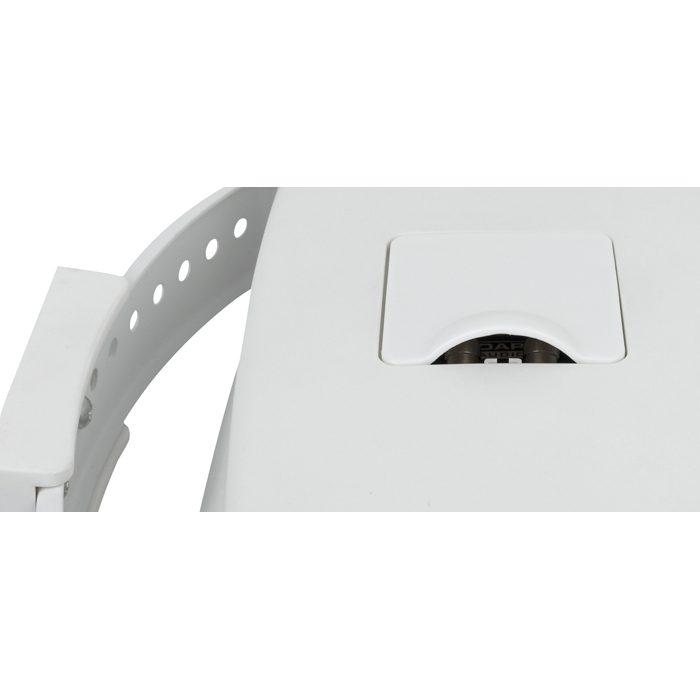

Multi angled brackets (tiltable to up to 60 degrees)
Quick and easy installation in either horizontal or vertical position
Elegant ABS design available in black and white
Perfect in combination with DAP CA-4150 Amplifier
The DAP Evo range offers decent 4" to 8" wall speaker sets with multi-angle brackets that are easy to install and adjust, suitable for background music at public places, businesses and theme parks. They are available in three versions: active indoor, passive outdoor and 100 V outdoor. The speakers have different mounting options for both horizontal and vertical positioning and are available in black and white versions to suit any environment.
The active Evo speakers are equipped with a built-in Class D amplifier with 2-band equalizer and volume control. The RCA and balanced green terminal inputs allow a quick and economical installation. The passive Evo speakers are suitable for outdoor installations. They have an IP54 rating and are equipped with a cap to protect the connectors from heavy rainfall. The 100 volt Evo Speakers also have an IP54 rating and are suitable for both 70 and 100 volt installations with 5 power taps and a low impedance.
Interested in our DAP Evo series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

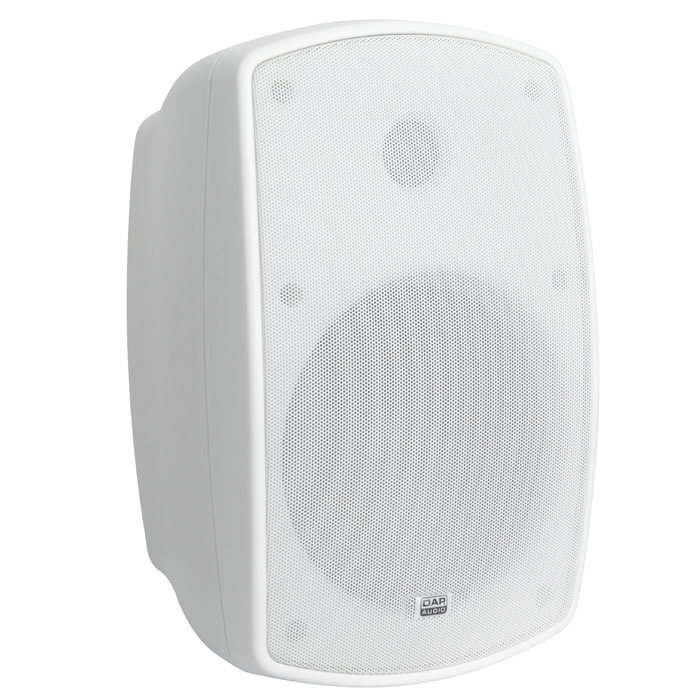

The DAP EVO 6 is a set of two 6.5-inch passive installation speakers for producing an excellent sound quality of up to 114 dB at one meter distance. With a peak power of 140 watt each, these 2-way Hi-Fi speakers have a high load capacity. It is therefore a perfect full-range audio solution for many locations such as restaurants, retail stores and even clubs.
The EVO 6 fits nicely into any indoor and outdoor location due to its elegant design (available in black and white), strong ABS housing and IP54 rating for protection against heavy rainfall, dust ingress and splash water.

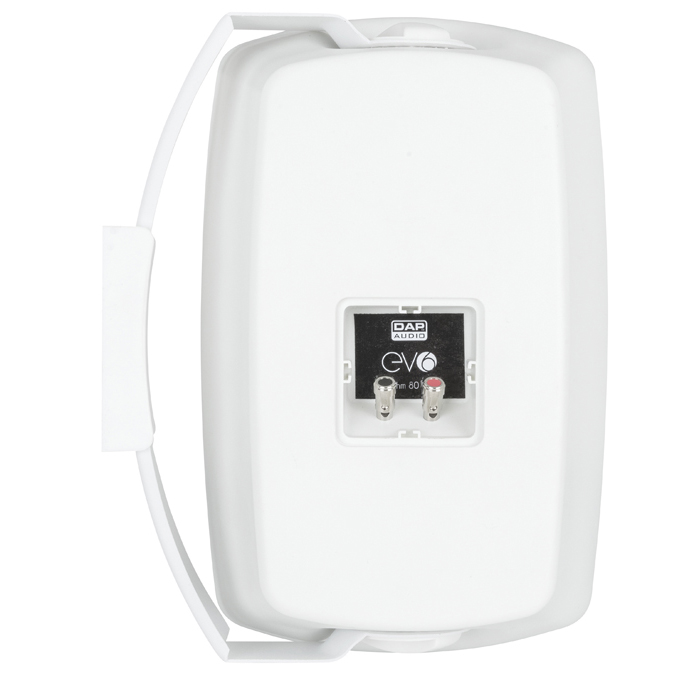

Installation can be done quickly and easily with a terminal connectors and included brackets suitable for either horizontal or vertical mounting. Please note that an external amplifier is required. The DAP CA-4150 is a suitable device for amplifying the EVO 6 speaker set.
Peak Input Power: 140 W
Passive Input Connection: Terminal
Speaker System: 2-way
Speaker Sensitivity (1 W/1 m): 90 dB
Speaker Impedance: 8 Ω
Maximum SPL at 1 m: 114 dB
Frequency Response Minimum: 50 Hz
Frequency Response Maximum: 20000 Hz
Woofer Diameter: 6.5"
Woofer Voice Coil Diameter: 1.5"
Compression Driver Diameter: 1"
Compression Driver Voice Coil: 1"
Height (mm): 302 mm
Width (mm): 196 mm
Length (mm): 193 mm
Material: ABS
Colour: White
Weight: 2.8 kg
IP Rating: IP54
