The DAP DRX is a series of lightweight road top/sub speaker combinations available in both passive and active models, suitable for mobile DJs at small to medium sized venues. The speakers have a compact and lightweight design with a nice modern finish. The sound quality is decent with a wide full-range frequency range.
The DRX series consists of 8 to 15 inch top cabinets and 10 to 18 inch subwoofers. The passive models are incredibly lightweight, are equipped with speaker input and through connector and are suitable in combination with DAP HP amplifiers. The active models are equipped with a class AB amplifier with XLR/Jack input, volume control and on/off switch.
DRX cabinets are equipped with handles for quick and easy transport. In addition, a 35 mm pole mount adapter allows the speaker to be placed on top of a speaker or distance tube. Interested in our DAP DRX speakers? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

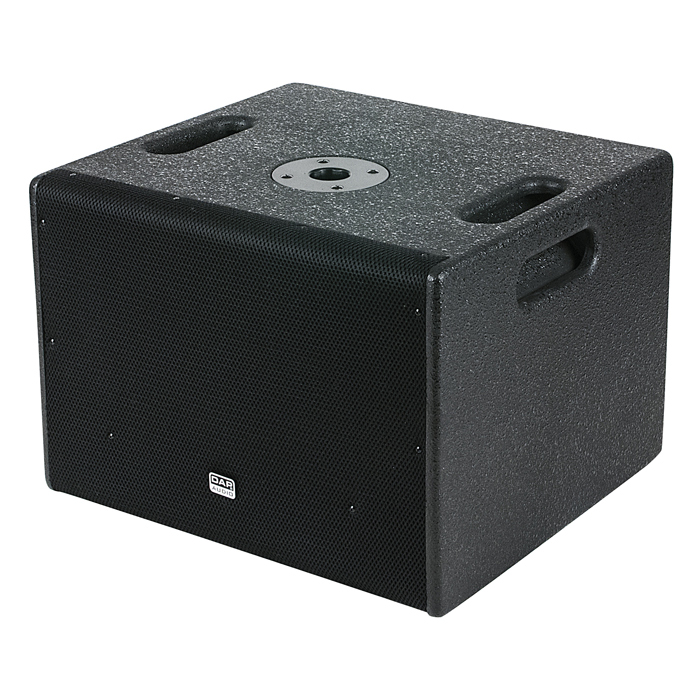

The DAP DRX-10BA is a robust, compact and lightweight 10-inch subwoofer suitable for mobile applications. Equipped with a 300-watt Class D amplifier with high pass filter, it can produce a maximum SPL of 121.8 dB at 1 meter distance. This will provide a well supporting bass sound for supporting your small audio installation.

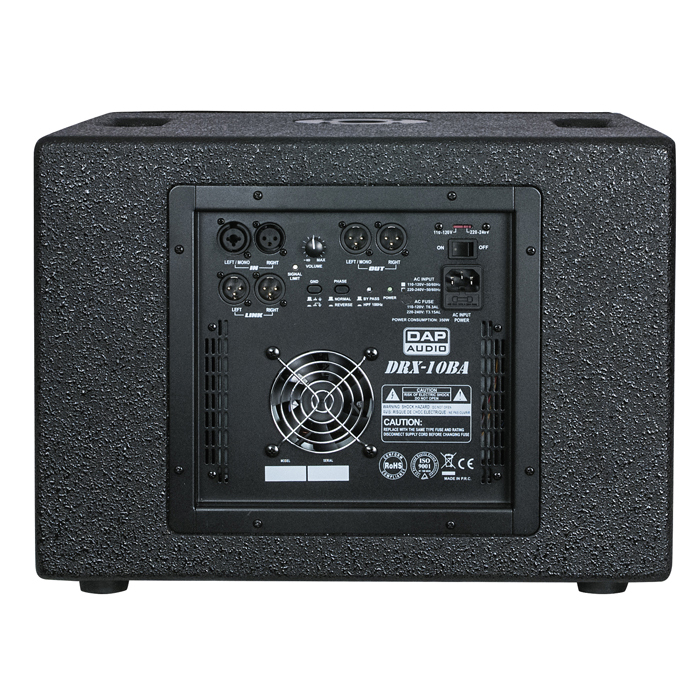

The DRX-10BA has a very modern design and is utmost practical for frequent touring. It has multiple connectivity options and is equipped with recessed handles, rubber feet and 35 mm pole mount adapter.
Power Amplifier RMS Output: 300 W
Power Amplifier Peak Output: 600 W
Mono Inputs: 2
THD Level: < 0.5 %
Signal-to-noise Ratio: > 80 dB
Amp Technology: Class D
Speaker System: Subwoofer
Maximum SPL at 1 m: 121.8 dB
Frequency Response (-6 dB) Minimum: 50 Hz
Frequency Response (-6 dB) Maximum: 120 Hz
Crossover Frequency (High): 100 Hz
Woofer Voice Coil Diameter: 2.5"
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 300 W
Power Connector In: IEC
Height (mm): 325 mm
Width (mm): 465 mm
Depth (mm): 421 mm
Material: MDF
Weight: 16.4 kg
Electronic Protection: Clip limiter (fixed) / Convection-fan / DC voltage / Thermal
