The DAP DRX is a series of lightweight road top/sub speaker combinations available in both passive and active models, suitable for mobile DJs at small to medium sized venues. The speakers have a compact and lightweight design with a nice modern finish. The sound quality is decent with a wide full-range frequency range.

The DRX series consists of 8 to 15 inch top cabinets and 10 to 18 inch subwoofers. The passive models are incredibly lightweight, are equipped with speaker input and through connector and are suitable in combination with DAP HP amplifiers. The active models are equipped with a class AB amplifier with XLR/Jack input, volume control and on/off switch.

DRX cabinets are equipped with handles for quick and easy transport. In addition, a 35 mm pole mount adapter allows the speaker to be placed on top of a speaker or distance tube. Interested in our DAP DRX speakers? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

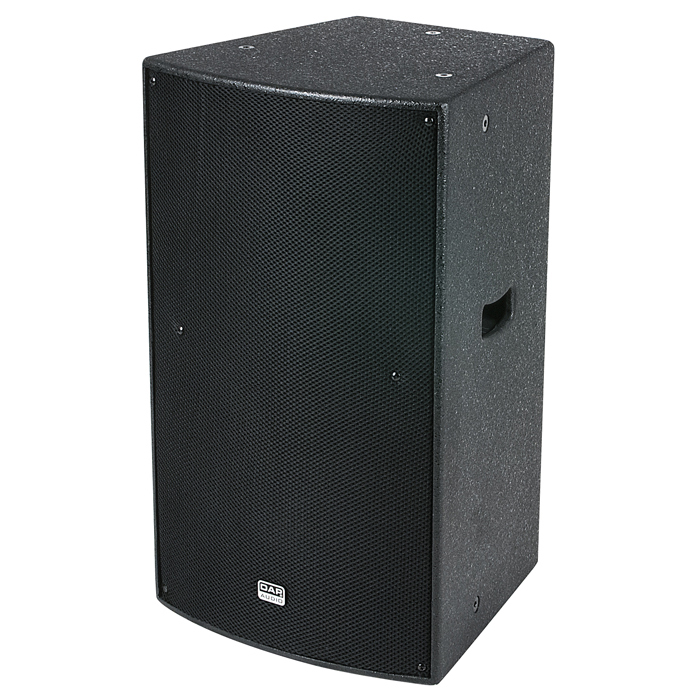

The DAP DRX-10A is an active full-range 10-inch speaker with a peak power of 390 watt (195 W RMS). This second smallest DRX model is intended for on-the-road use, suitable for music at small to medium size parties and other gatherings. It's a 2-way system that can deliver a maximum SPL of 120 dB at 1 m. For an enhanced bass performance we recommend to use the DRX-10A together with the DRX-15BA subwoofer.

The DRX-10A is ideal for mobile applications due to its lightweight, compact design with built-in handle, scratch-resistant black finish and 15 mm thick MDF. It therefore easily survives the rigours of frequent touring. Besides, the DRX-10A can be installed on a universal speaker stand due to its 35 mm pole mount.

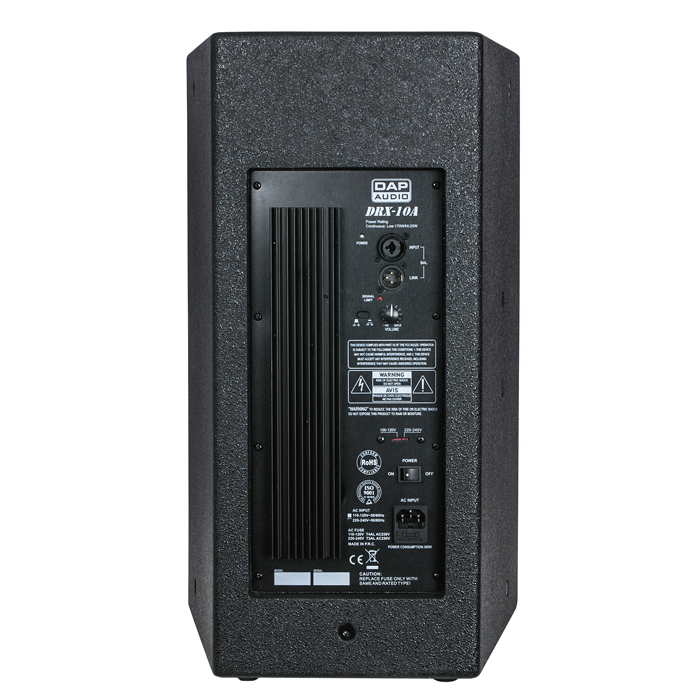

The internal 390 watt amplifier is equipped with a XLR/Jack input and XLR line output connector, volume control and switchable ground lift. Accessoires are optional, such as speaker stands, distance tubes, cables and 8 mm hanging eyes.

Low Driver Power: 170 W
High Driver Power: 25 W
Power Amplifier RMS Output: 195 W
Power Amplifier Peak Output: 390 W
Mono Inputs: 1
THD Level: < 0.5 %
Signal-to-noise Ratio: > 80 dB
Amp Technology: Class AB
Speaker System: 2-way
Maximum SPL at 1 m: 120 dB
Frequency Response (-6 dB) Minimum: 55 Hz
Frequency Response (-6 dB) Maximum: 20000 Hz
Woofer Voice Coil Diameter: 2"
Compression Driver Voice Coil: 1"
Dispersion Angle (Horizontal): 50°
Dispersion Angle (Vertical): 50°
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 201 W
Power Connector In: IEC
Height (mm): 550 mm
Width (mm): 320 mm
Depth (mm): 328.8 mm
Material: MDF
Weight: 17.7 kg
Electronic Protection: Clip limiter (fixed) / DC voltage / Thermal
