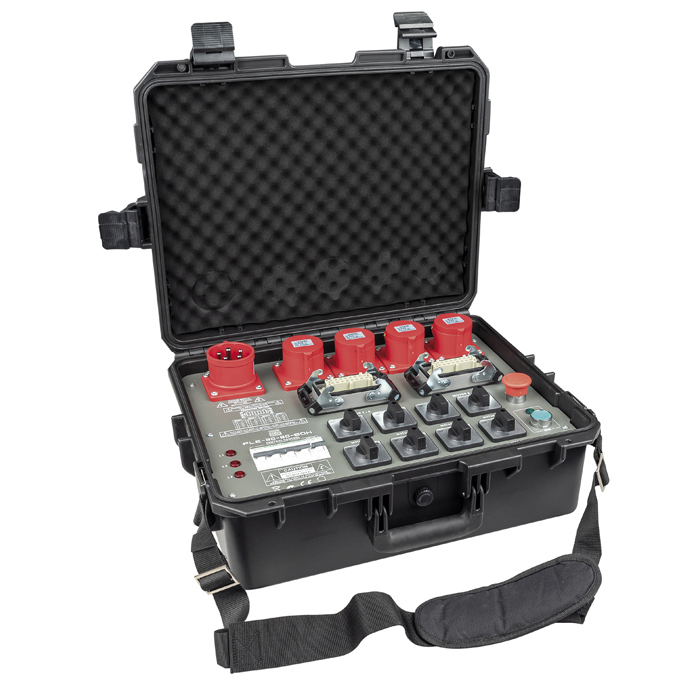

PLE-30-80 Direct Control Chain Hoist Controller - Box version

PLE-30-80 Direct Control Chain Hoist Controller - Box version - Bild 2

PLE-30-80 Direct Control Chain Hoist Controller – Box version

8-Channel

Showgear

Artikelnr: D-70237 Kategorier: Chain Hoists, Rigging, Stage & Rigging Brand: Showgear

Compact and versatile

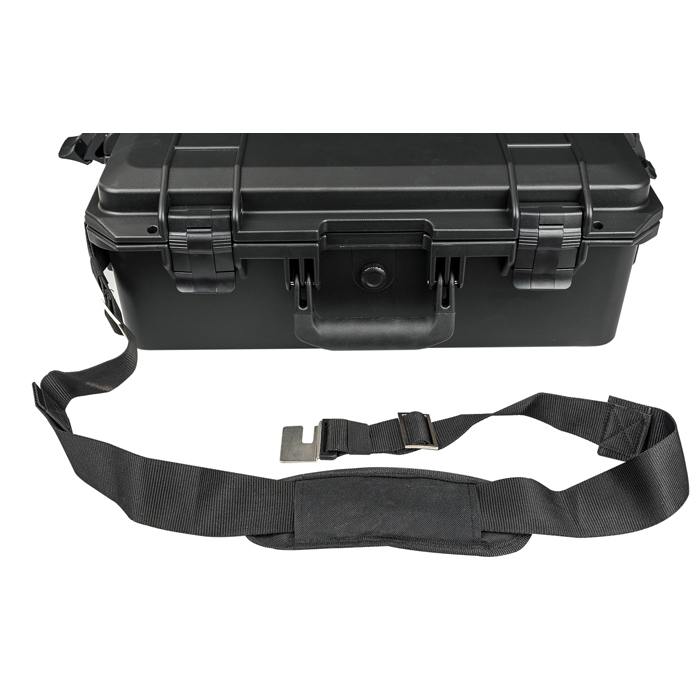

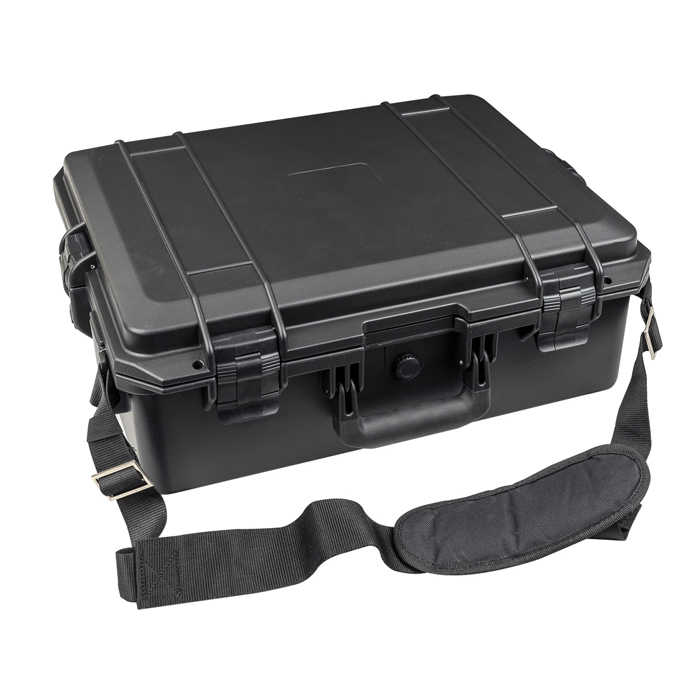

Including ABS carrying case
2 x 16-pin multipin output

Tross (481)
Färgfilter (1)
Architectural Light (565)
Audio (475)
Audiovisual (70)
Bags & Cases (300)
Cables & Connectors (663)
Entertainment Lighting (979)
Merchandise (4)
Special Effects (215)
Stage & Rigging (722)
- SET Frames (17)
  - Metric (5)
  - SET Frame Accessories (12)
- Truss & SET Frame (5)
  - Truss Accessories (5)
- Rigging (213)
  - Rigging Accessories (24)
  - Chain Hoists (26)
  - Clamps (74)
  - Safety Cables (32)
  - Slings (24)
- Rigging Accessories (33)
- Staging & Accessories (199)
  - Cable Bridges (11)
  - Crowd Control (6)
  - Roady Tools & Accessories (14)
  - Stage Tapes (100)
  - Stages (68)
- Textiles (288)
  - Pipe & Drape Hardware (10)
  - Pipe & Drape Textiles Metric (2)
  - Backdrops (27)
  - Deco Textiles (74)
  - Eurotrack (33)
  - LED Drapes (4)
  - Pipe & Drape (120)
  - Textile Accessories (18)

Beskrivning
Specifikationer

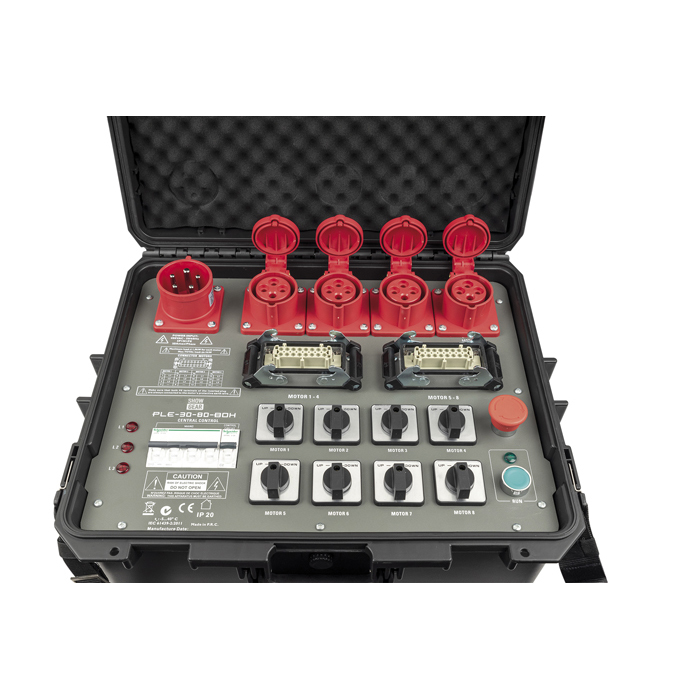

The Showgear Chainhoist controller is a dedicated controller for all popular direct controlled chainhoists such as CM Lodestar. Each of the 8 hoists can be selected individually to go up or down or to be deselected. It has 4 x 4-pin CEE connectors as well 2 pieces of 16-pin multipin to connect a break/out box.

Power Supply: 400 VAC 3 Phase
Rated Current (A): 10 A
Power Connector In: CEE5P 32 A
Power Connector Out: CEE4P 16A / HAN16 Out
MCB Rated Current: 10 A
MCB Class: Class D
RCCB Class: C
Length (mm): 550 mm
Height (mm): 220 mm
Width (mm): 465 mm
Weight: 12.9 kg
