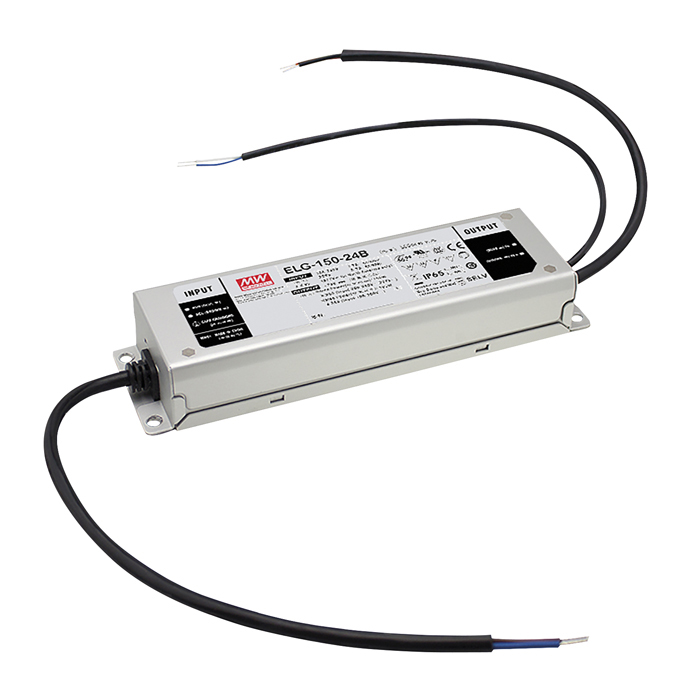

LED Power Supply IP67 150 W/24 V Dali

Meanwell ELG-150-V-24DA 3Y

Meanwell

Artikelnr: N-A9900683 Kategorier: Architectural Light, Artecta Accessories, Power Supplies Brand: Meanwell

Constant Voltage + Constant Current mode
Metal housing design with functional ground
Built-in active PFC function
No load / Standby power consumption <0.5 W
IP67 / IP65 rating for indoor or outdoor

Tross (481)
Färgfilter (1)
Architectural Light (565)
- Artecta Accessories (132)
  - Cables & Splitters (12)
  - Controllers (45)
  - LED Drivers (29)
  - Mounting Devices (8)
  - Power Supplies (38)
- Down Lights (24)
  - LED Panels (10)
  - Recessed (6)
  - Surface (8)
- Garden & Street Lights (14)
  - 240 V (14)
- Inground Spots (5)
  - High Voltage (5)
- LED Strips (297)
  - Aluminium Profiles (119)
  - LED Strip Accessories (35)
  - Neon Flex Light (11)
  - Strip Light Flex IP20 (86)
  - Strip Light Flex IP62 (16)
  - Strip Light Flex IP65 (8)
  - Strip Light Flex IP68 (14)
  - Strip Light Regid (3)
  - Strip Light Strings (5)
- Track Lighting (93)
  - 1-Phase Spots (2)
  - 1-Phase Tracks (6)
  - 3-Phase Spots (22)
  - 3-Phase Tracks (6)
  - Track Light Accessories (57)
Audio (475)
Audiovisual (70)
Bags & Cases (300)
Cables & Connectors (663)
Entertainment Lighting (979)
Merchandise (4)
Special Effects (215)
Stage & Rigging (722)

Beskrivning
Specifikationer

ELG-150 series is a 150 W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-150 operates from 100～305 VAC and offers models with 24 V. Thanks to the high efficiency up to 91 %, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Power Supply: 100-240 VAC 50-60 Hz
Output Voltage: 24 VDC
Power Consumption: 150 W
Output Current (A): 6 A
Protection Class: II
Length (mm): 219 mm
Height (mm): 36 mm
Width (mm): 63 mm
IP Rating: IP67
