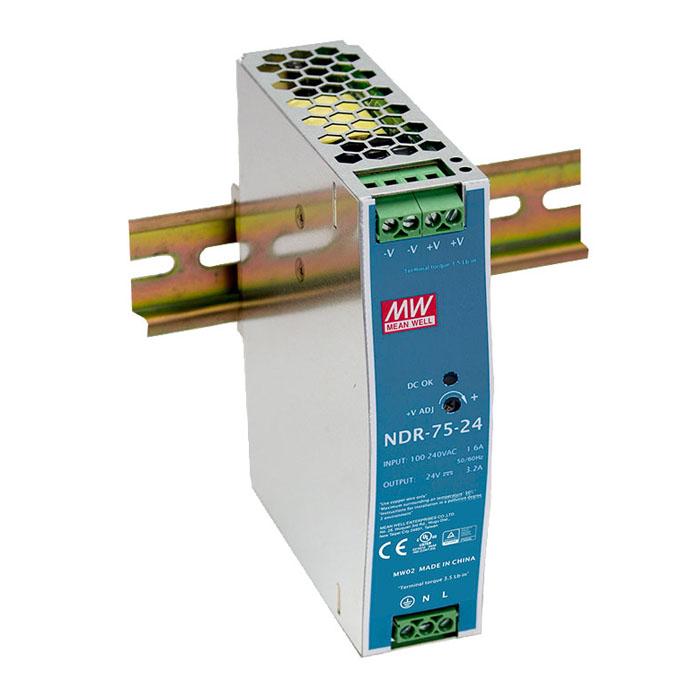

DIN Rail Power Supply 75 W/24 VDC

Mean Well NDR-75-24
MeanwellMeanwell
Artikelnr: N-A9900560 Kategorier: , , Brand:

Output 24 VDC/75 W
Wide AC Input Range (90 – 264 VAC)
Slim, metal DIN Rail housing
Protection against Short Circuit, Overload, Overvoltage, Over Temperature

The NDR-75-24 is a slim-design DIN rail power supply that can be mounted on TS-35/7.5 or TS-35/15 DIN rails. It is intended for industrial use and built to comply to the UL 508 standard. It has a built-in constant current limiting circuit, offering rugged short-circuit protection. Cooling is managed by free air convection, which is helped by its metal housing. It accepts input voltages from 90-264 VAC and is fully protected against overload, overvoltage, and overtemperature.

Power Supply: 88-264 VAC
Output Voltage: 24 VDC
Power Consumption: 75 W
Output Current (A): 3.2 A
Length (mm): 102 mm
Height (mm): 125.2 mm
Width (mm): 32 mm
IP Rating: IP20 (indoor use only)
