CLB3255LD TV Ceiling Mount Long Double Sided

32" to 55" - tiltable 20° down - adjustable length

Showgear

Artikelnr: D-100273 Kategorier: Audiovisual, AV Stands & Brackets, Ceiling Brackets Brand: Showgear

Double Sided TV Ceiling Mount
Long length adjustable arm (1278–1778 mm/50.3″–70″)
Suitable for 32″–55″ screens
20° down tilt function
50 kg (110 lbs) weight capacity
Black, metal housing
Mounting screws included

Tross (481)
Färgfilter (1)
Architectural Light (565)
Audio (475)
Audiovisual (70)
- AV Controllers (1)
  - AV Interfaces (1)
- AV Stands & Brackets (32)
  - AV Stand Accessories (2)
  - Ceiling Brackets (14)
  - Flatscreen Trolleys (2)
  - Wall Brackets (14)
- Projection Screens (37)
  - Electric Screens (8)
  - Manual Screens (8)
  - Mobile Screens (13)
  - Screen Accessories (8)
Bags & Cases (300)
Cables & Connectors (663)
Entertainment Lighting (979)
Merchandise (4)
Special Effects (215)
Stage & Rigging (722)

Beskrivning
Specifikationer

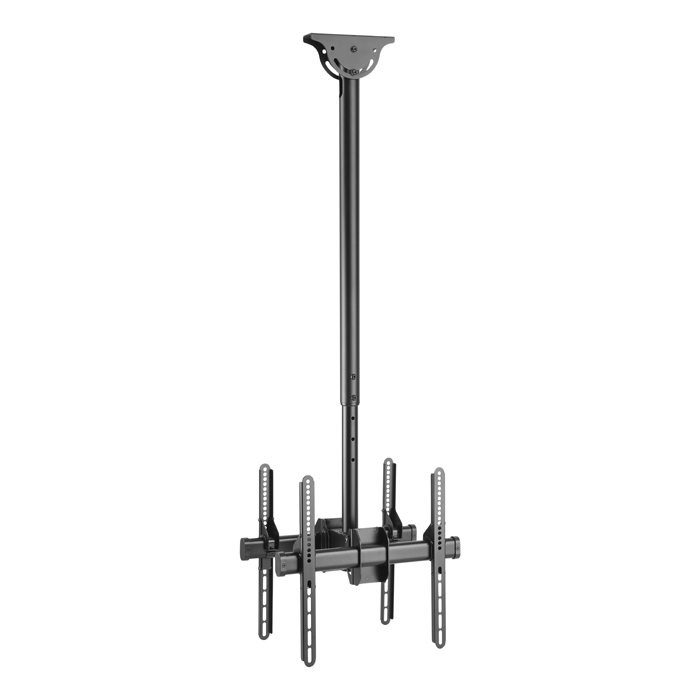

The Showgear CLB3255LD is a perfect tool for attaching two 32 to 55 inch Flat Screen TVs or Monitors steadily to a ceiling in reversed direction (double sided). Its long arm-length is adjustable from 1278 to 1778 mm (4.19–5.83 ft) and you'll have the option to tilt the screens downward up to 20°. This allows you to set the correct viewing angle and height for your application.

The CLB3255LD is a strong metal ceiling mount bracket that supports two screens with a maximum total weight of 50 kg (110 lbs). Attachment screws are included for a quick and hassle-free installation.

Tilt Adjustment: 25°
Tilt Adjustment Down: 20°
Tilt Adjustment Up: 5°
Pan Adjustment: 180°
Minimum Height (mm): 1278 mm
Maximum Height (mm): 1778 mm
Width (mm): 480 mm
Minimum Screen Size (inch): 32
Maximum Screen Size (inch): 55
VESA: 200 x 200 / 300 x 300 / 400 x 200 / 400 x 400 mm
Weight: 8.65 kg
Maximum Load: 50 kg
Material: Metal
Colour: Black
Reference Standard: CE
