The Showgear PowerCore 63.4c provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.

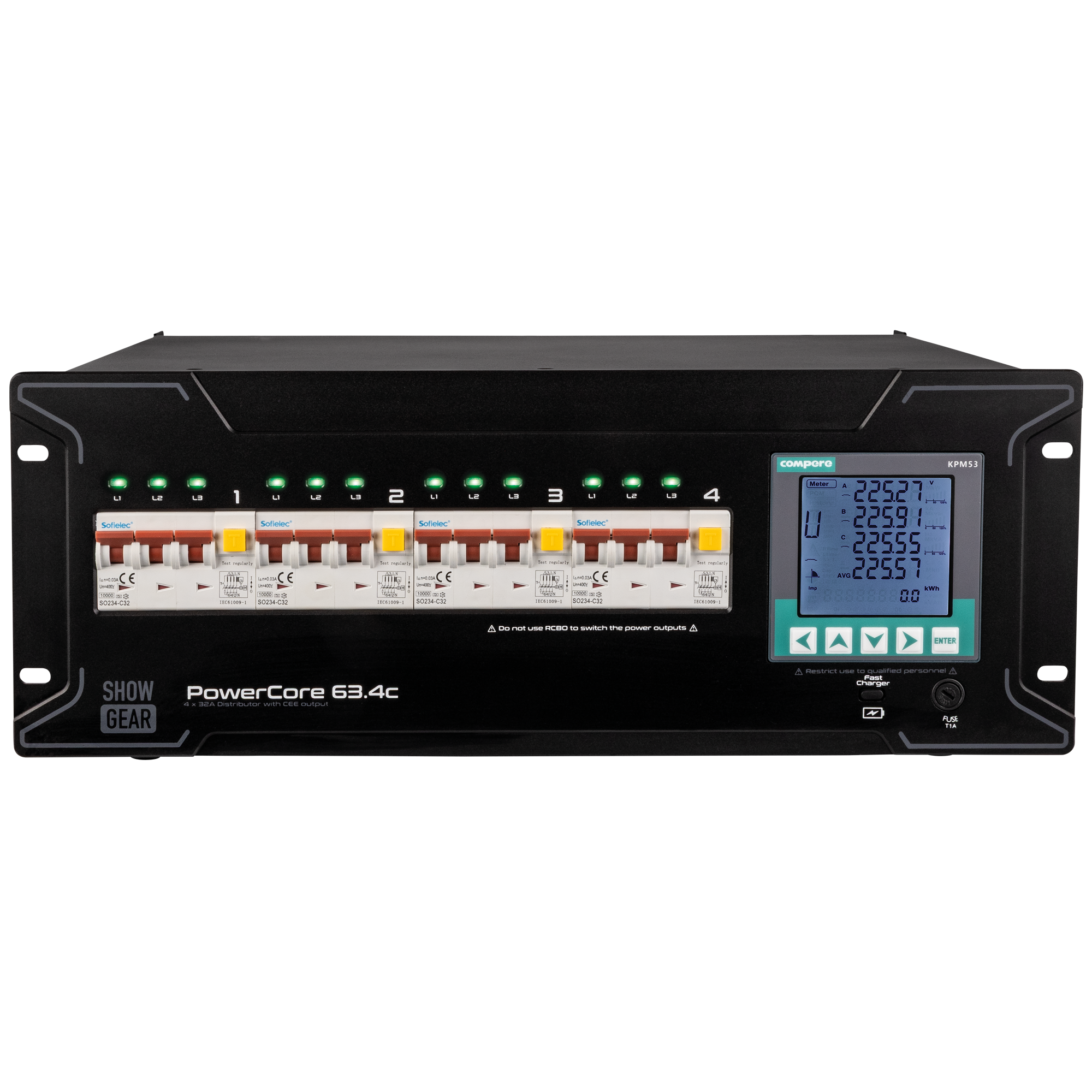

With an LED for each output, it's also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.
A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.

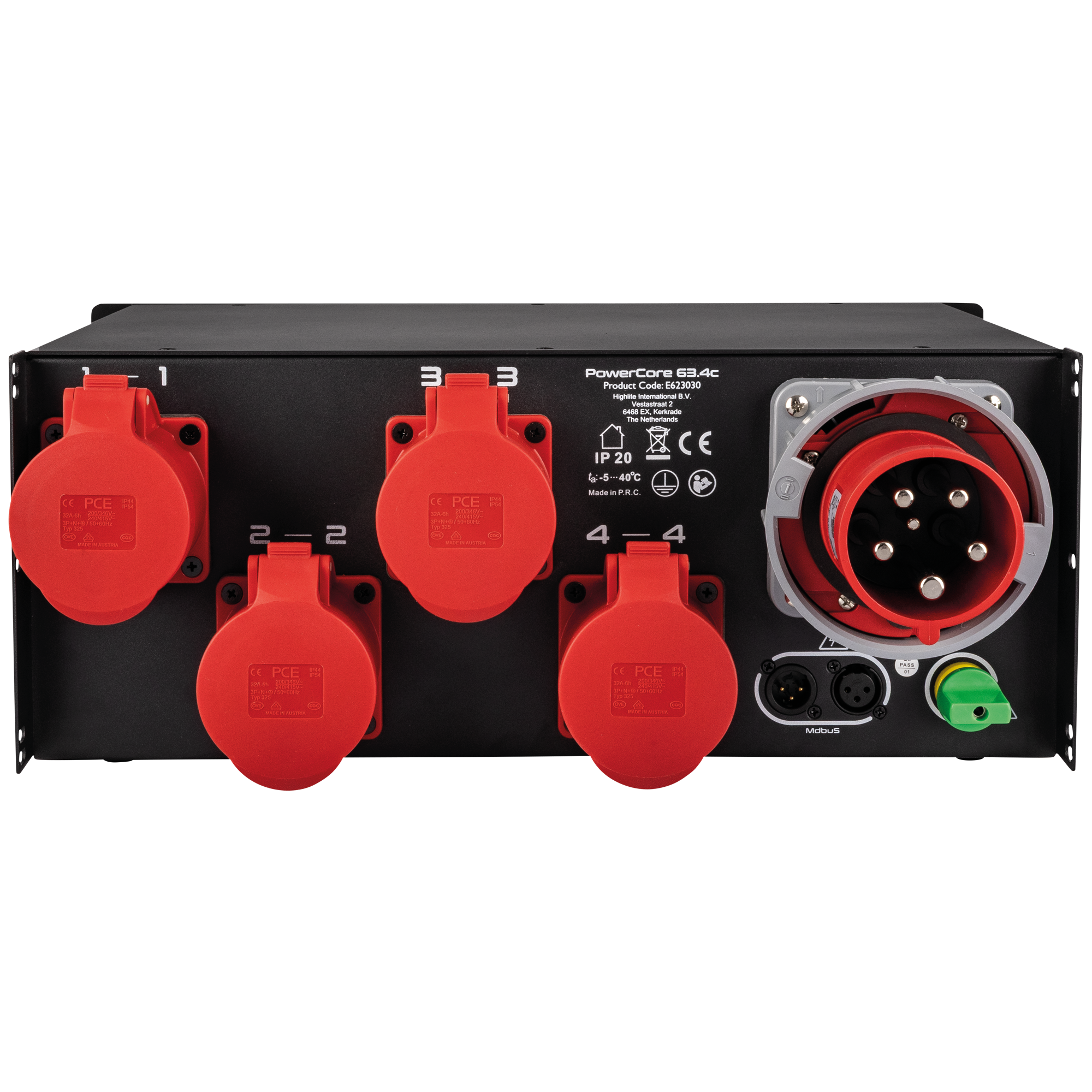

Power Connector In: CEE5P 63 A
Power Connector Out: CEE5P 32 A
MCB Rated Current: 32 A
MCB Class: Class C
RCCB Class: A
RCCB Sensitivity: 30 mA
Length (mm): 411 mm
Height (mm): 183 mm
Width (mm): 483 mm
Weight: 13.8 kg
Rack Units: 4 U
IP Rating: IP20 (indoor use only)
Housing: Aluminium / Metal
