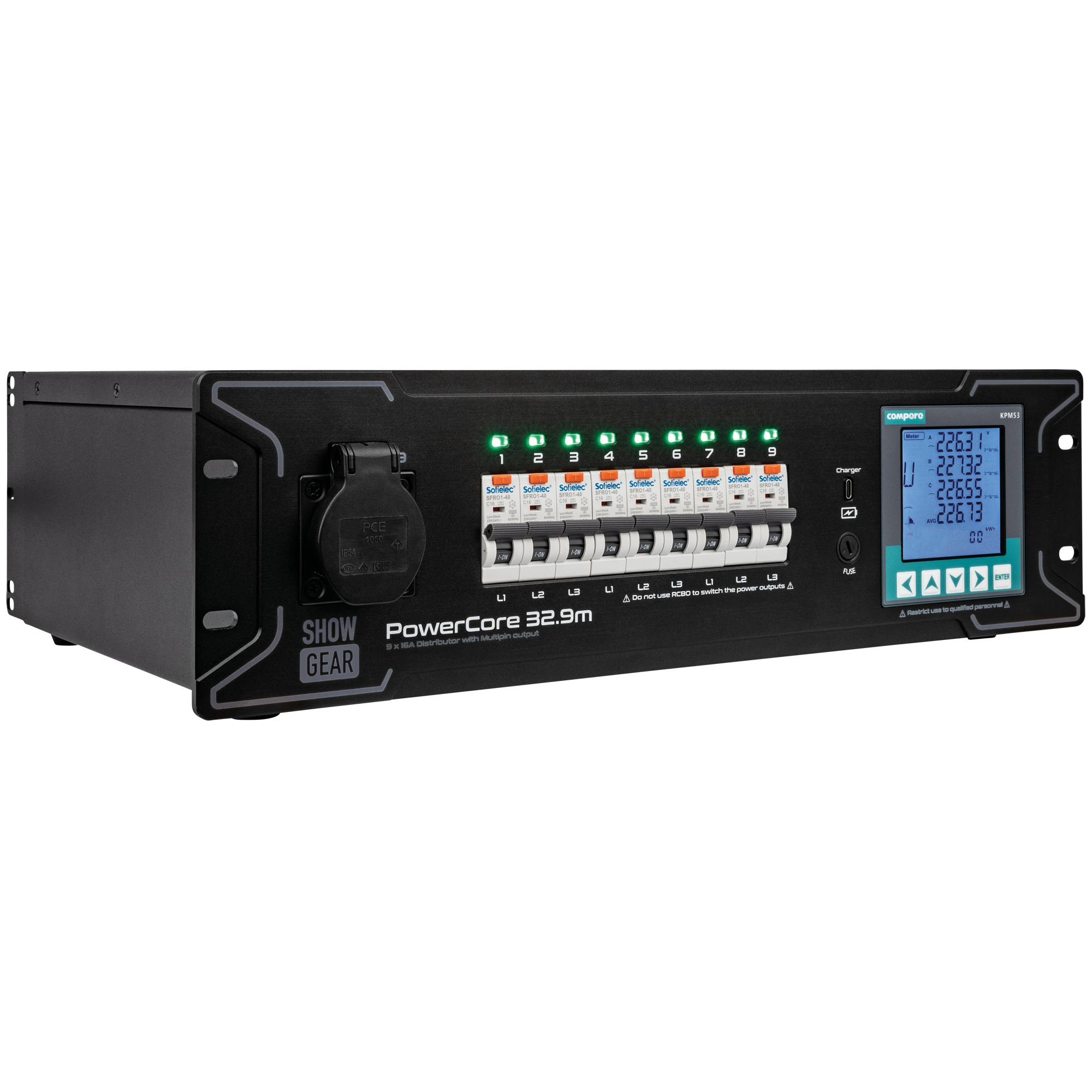

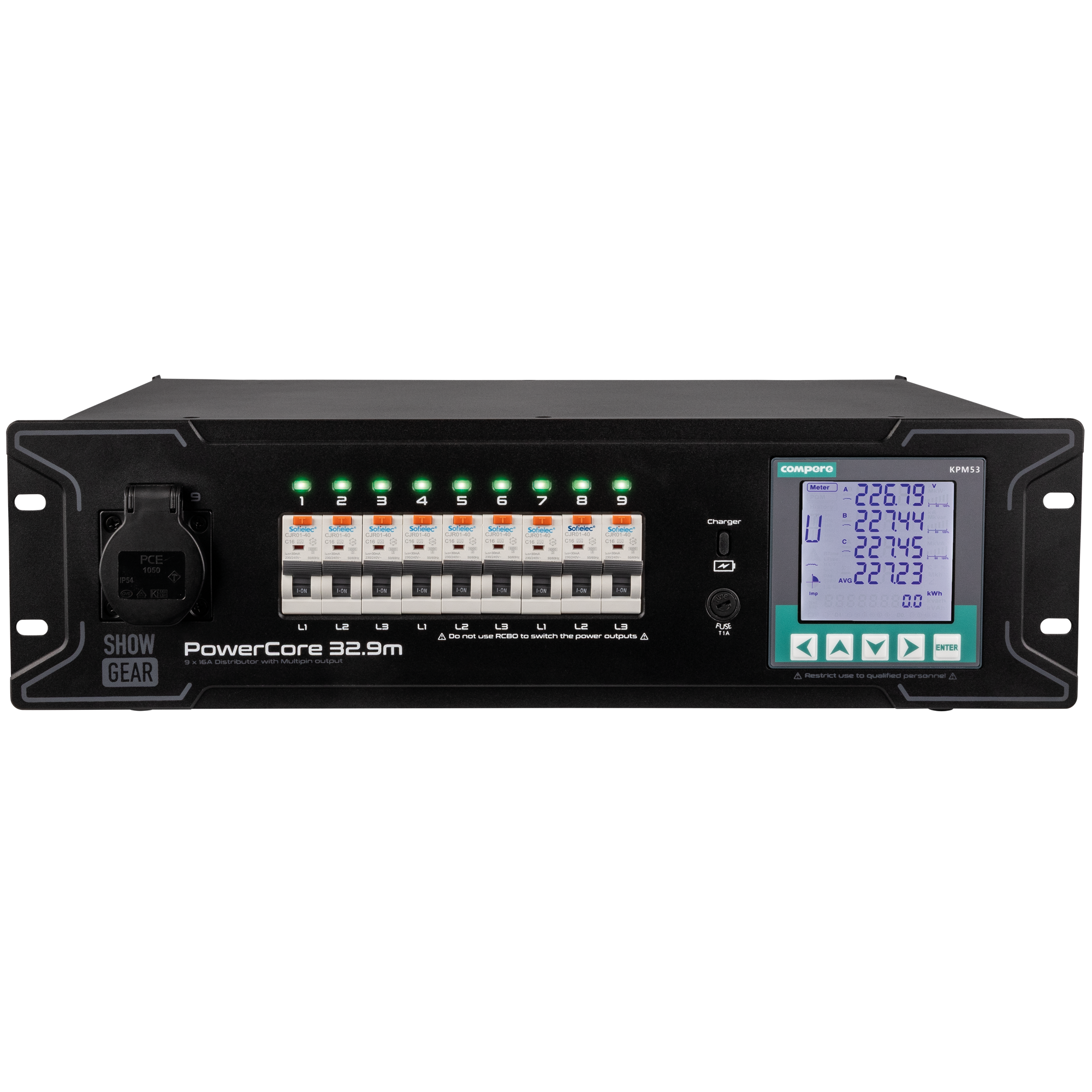

PowerCore 32.9m 1 + 9x Schuko + 1x Multipin H16

1 + 9x Schuko + 1x Multipin H16
Artikelnr: D-E623002 Kategorier: , , Brand:

RCBO per output
LED per output
3-inch display
Power meter with MdbuS protocol
CNC-milled aluminium front panel and PCE connectors

The Showgear PowerCore 32.9m provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.

With an LED for each output, it's also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.

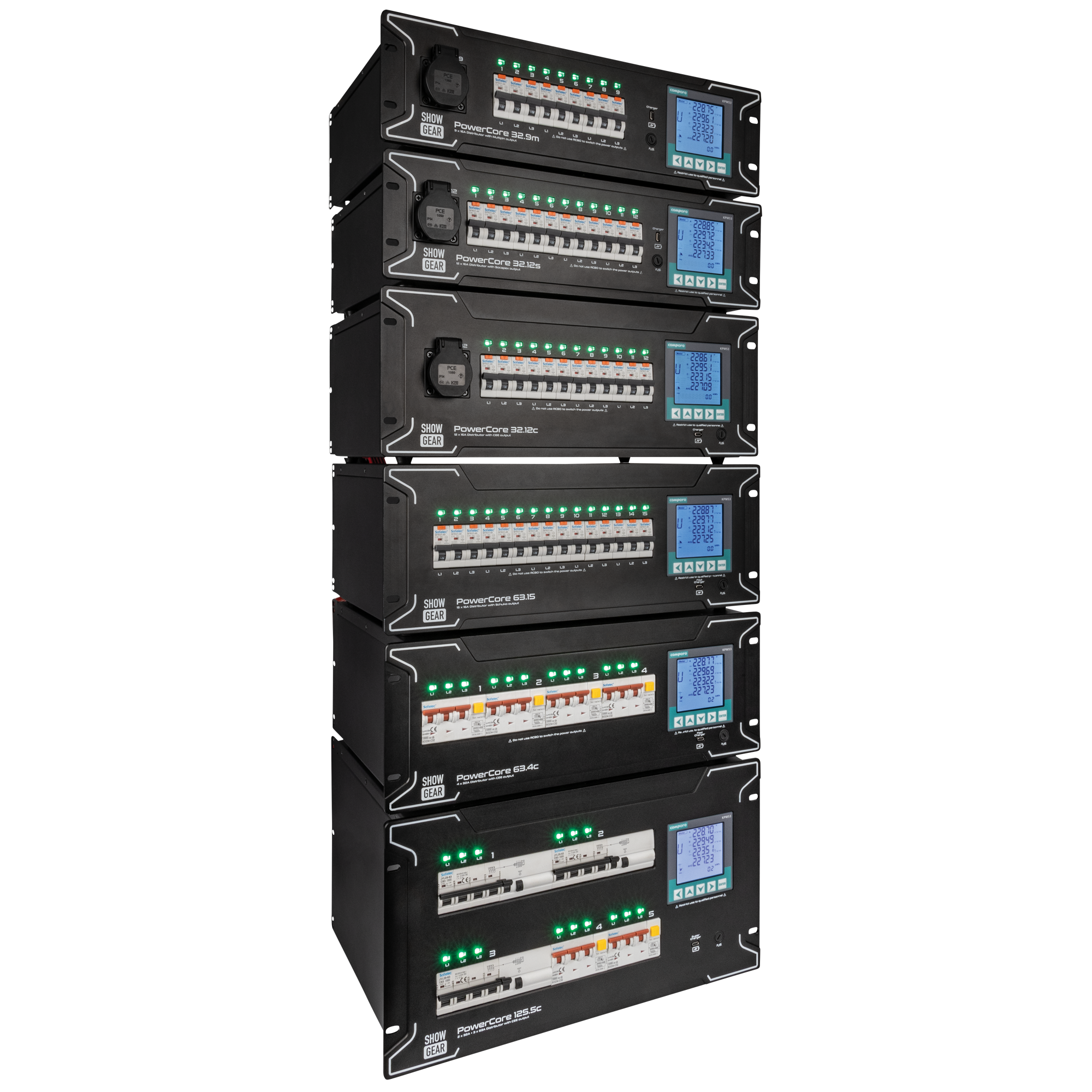

A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.

Rated Current (A): 32 A
Power Connector In: CEE5P 32 A

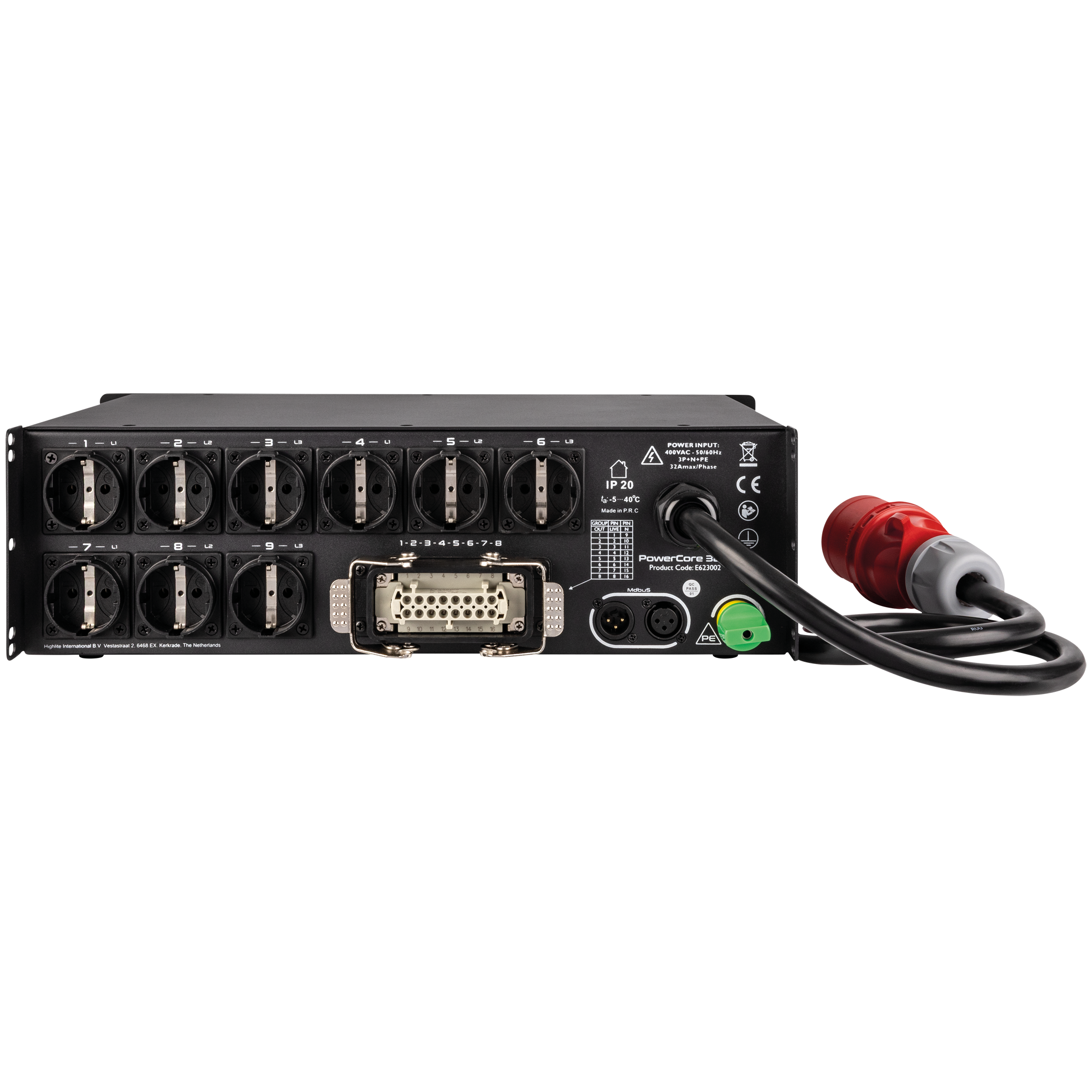

Power Connector Out: HAN16 Out / Schuko Socket, Type F
MCB Rated Current: 16 A
MCB Class: Class C
RCCB Class: A
RCCB Sensitivity: 30 mA
Length (mm): 344 mm
Height (mm): 139 mm
Width (mm): 483 mm
Weight: 11.9 kg
Rack Units: 3 U
IP Rating: IP20 (indoor use only)
Housing: Aluminium / Metal
