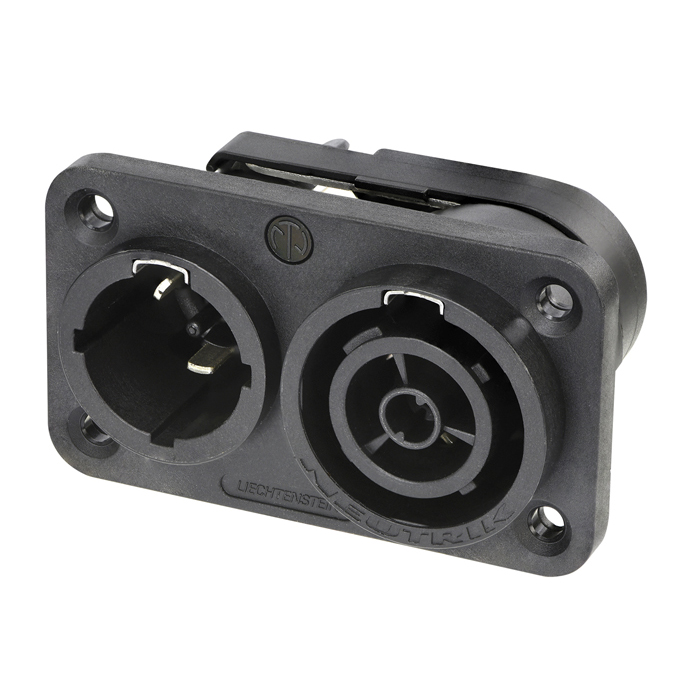

powerCON TRUE1 Inlet Connector
Locking 16 A mains connector
Lockable 16 A single phase connector
Extremely robust and reliable
Easy and reliable twist lock system
IP65 when mated or with sealing cover mounted
The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Rated Current (A): 16 A
Minimum Wire Size: 1 mm²
Maximum Wire Size: 2.5 mm²
IP Rating: IP65
Housing: Polyamide
Minimum Wire Size: 1 mm²
Maximum Wire Size: 2.5 mm²
IP Rating: IP65
Housing: Polyamide
