powerCON Connector – L

Grey/white housing - Large-diameter cables

Artikelnr: D-NAC3FXXBWL Kategorier: 240 V Connectors, Cables & Connectors, Power Distribution Brand: Neutrik

Lockable single-phase connector
Fast and easy twist locking system
Extremely dependable and robust
For large outer diameter cables (10 – 16 mm)

Tross (481)
Färgfilter (1)
Architectural Light (565)
Audio (475)
Audiovisual (70)
Bags & Cases (300)
Cables & Connectors (663)
- Adapters (29)
  - DMX Adapters (16)
  - Network Adapters (13)
- Cable Spool (15)
  - Combined Power & Signal Cables (6)
  - Data Cables (9)
- Connectors (5)
  - Speaker Chassis & Connectors (1)
  - XLR Chassis & Connectors (4)
- Power Distribution (399)
  - 110 V Connectors (4)
  - 240 V Connectors (94)
  - 240 V Extension Cords (149)
  - 240 V Socket Boxes (24)
  - 400 V Connectors (56)
  - 400 V Extension Cords (14)
  - Breakout Bars (1)
  - Breakout Boxes (7)
  - Power Distributors (22)
  - Power Multi-Cables (6)
  - Power Splitters (18)
- Prefab Cables (215)
  - AV Cables (3)
  - Cable Accessories (34)
  - Combined Power & Data Signal Cables (10)
  - Combined Power & Light Signal Cables (69)
  - DMX Cables (99)
Entertainment Lighting (979)
Merchandise (4)
Special Effects (215)
Stage & Rigging (722)

Beskrivning
Specifikationer

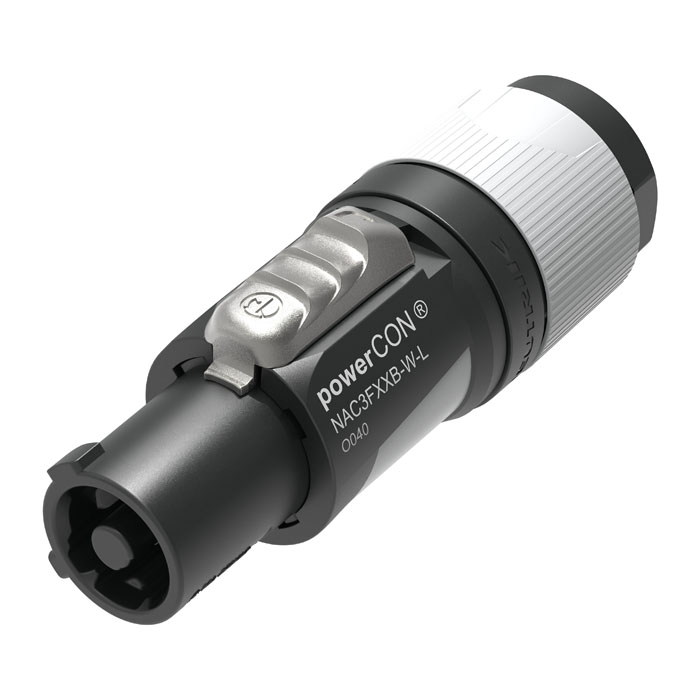

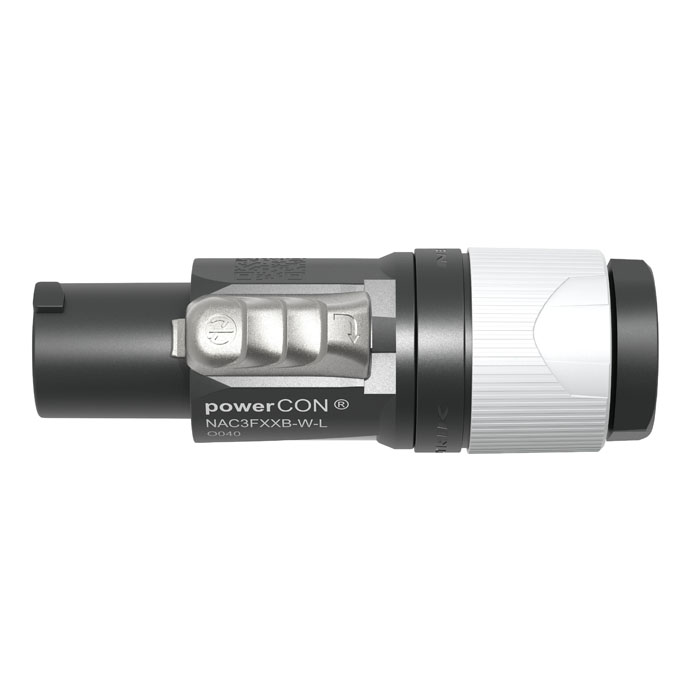

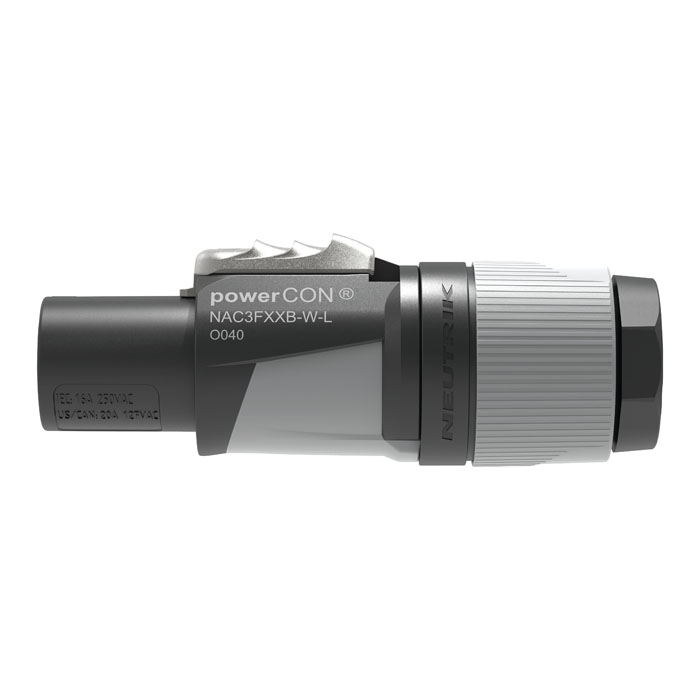

The Neutrik powerCON Connector is a keyed, locking AC mains cable connector for single-phase power outputs. It has silver-plated contacts and is suitable for circuit-breaking when mated with Neutrik powerCON XX Series receptacles. It has screw terminals for assembling with signal wires between 1.5 and 2.5 mm² and an outer diameter between 10 and 16 mm.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Rated Current (A): 16 A
Minimum Wire Size: 1.5 mm²
Maximum Wire Size: 2.5 mm²
IP Rating: IP20 (indoor use only)
Housing: ABS
